Back Light
ACL / ACL2 / ACL4 / ACLF
This lighting emits light from behind the object, making the background bright and the object appear dark. It is most commonly used for exterior measurements and mark recognition on translucent objects.
[ Application ]
Various silhouette inspections, lead frame inspections, electronic component appearance inspections, and contamination inspections of transparent films.
Back Light
Illumination Structure · Examples
[ ACL4 Series ]
It is space-efficient and has good directivity, making it suitable for dimensional and foreign object inspections. It is characterized by having lower light intensity compared to general Back Light.
Object
ACL4
[ ARL-FLA Series ]
It is easy to obtain results for flat objects, but for curved objects, the light tends to spread, making it difficult to obtain accurate results. From a cost perspective, it is reasonable.
Object
ACL2
Back Light
ACL / ACL2 / ACL4 / ACLF
This lighting emits light from behind the object, making the background bright and the object appear dark. It is most commonly used for exterior measurements and mark recognition on translucent objects.
[ Application ]
Various silhouette inspections, lead frame inspections, electronic component appearance inspections, and contamination inspections of transparent films.
Back Light
Illumination Structure & Examples

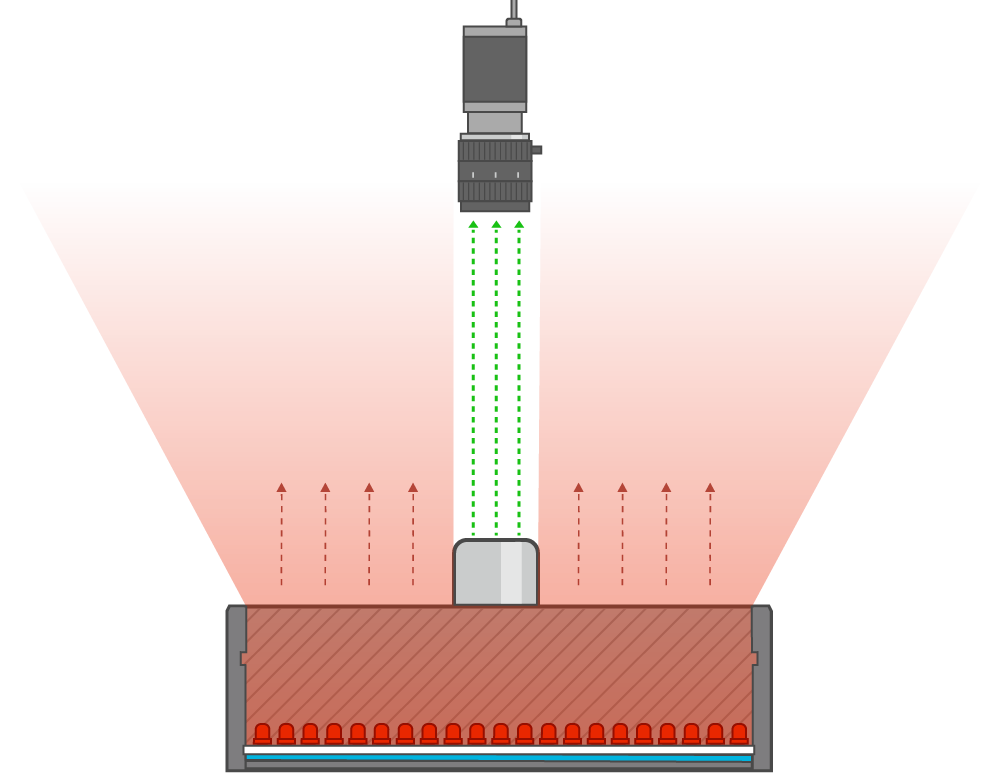

[ ACL4 Series ]
It is space-efficient and has good directivity, making it suitable for dimensional and foreign object inspections. It is characterized by having lower light intensity compared to general Back Light.
Object
ACL4
[ ACL2 Series ]
It is easy to obtain results for flat objects, but for curved objects, the light tends to spread, making it difficult to obtain accurate results. From a cost perspective, it is reasonable.
Object
ACL2
Product Specifications
Product List
Model | Color | Dimension | Power Consumption(W) | Input Voltage(DC V) | |
| ACLF2-160D | IR/R/G/B/W/UV | W(mm) : 160, D(mm) : 160, H(mm) : 20 | IR/R : 5.76 G/B/W/UV : 11.52 | IR/R : 12 G/B/W/UV : 12/24 |  |
| ACLF2-16080D | IR/R/G/B/W/UV | W(mm) : 210, D(mm) : 120, H(mm) : 12 | IR/R : 5.76 G/B/W/UV : 11.52 | IR/R : 12 G/B/W/UV : 12/24 |  |
| ACLF2-3101100D-12V | IR/R/G/B/W/UV | W(mm) : 350, D(mm) : 150, H(mm) : 12 | 17.28 | 12 |  |
| ACLF-70D | IR/R/G/B/W/UV | W(mm) : 70, D(mm) : 70, H(mm) : 8.5 | IR : 0.96 R/G/B/W/UV : 1.92 | IR/R : 12 G/B/W/UV : 12/24 |  |
| ACLF-82D | IR/R/G/B/W/UV | W(mm) : 82, D(mm) : 82, H(mm) : 8 | IR/R : 5.76 G/B/W/UV : 11.52 | IR/R : 12 G/B/W/UV : 12/24 |  |
| ACLF-100D | IR/R/G/B/W/UV | W(mm) : 156, D(mm) : 156, H(mm) : 9.5 | IR : 2.16 R/G/B/W/UV : 4.12 | IR/R : 12 G/B/W/UV : 12/24 |  |
| ACLF-132120D | IR/R/G/B/W/UV | W(mm) : 132, D(mm) : 120, H(mm) : 10 | IR/R : 3.36 G/B/W/UV : 6.72 | IR/R : 12 G/B/W/UV : 12/24 |  |
| ACLF-252208D | IR/R/G/B/W/UV | W(mm) : 252, D(mm) : 208, H(mm) : 11 | IR/R : 9.6 G/B/W/UV : 19.2 | IR/R : 12 G/B/W/UV : 12/24 |  |
