Shadowless Dome Light
ADL
It is a lighting system that emits soft and uniform light by illuminating the inside of a hemispherical dome. The light reflected off the curved surface has directional properties from multiple angles, allowing for the capture of smooth, shadow-free images. This type of lighting is highly useful for inspecting curved surfaces, protruding objects, and high-reflectivity materials.
[ Application ]
Inspection of text on highly reflective surfaces such as glass, as well as inspection of curved or contoured surfaces, etc.
Shadowless Dome Light

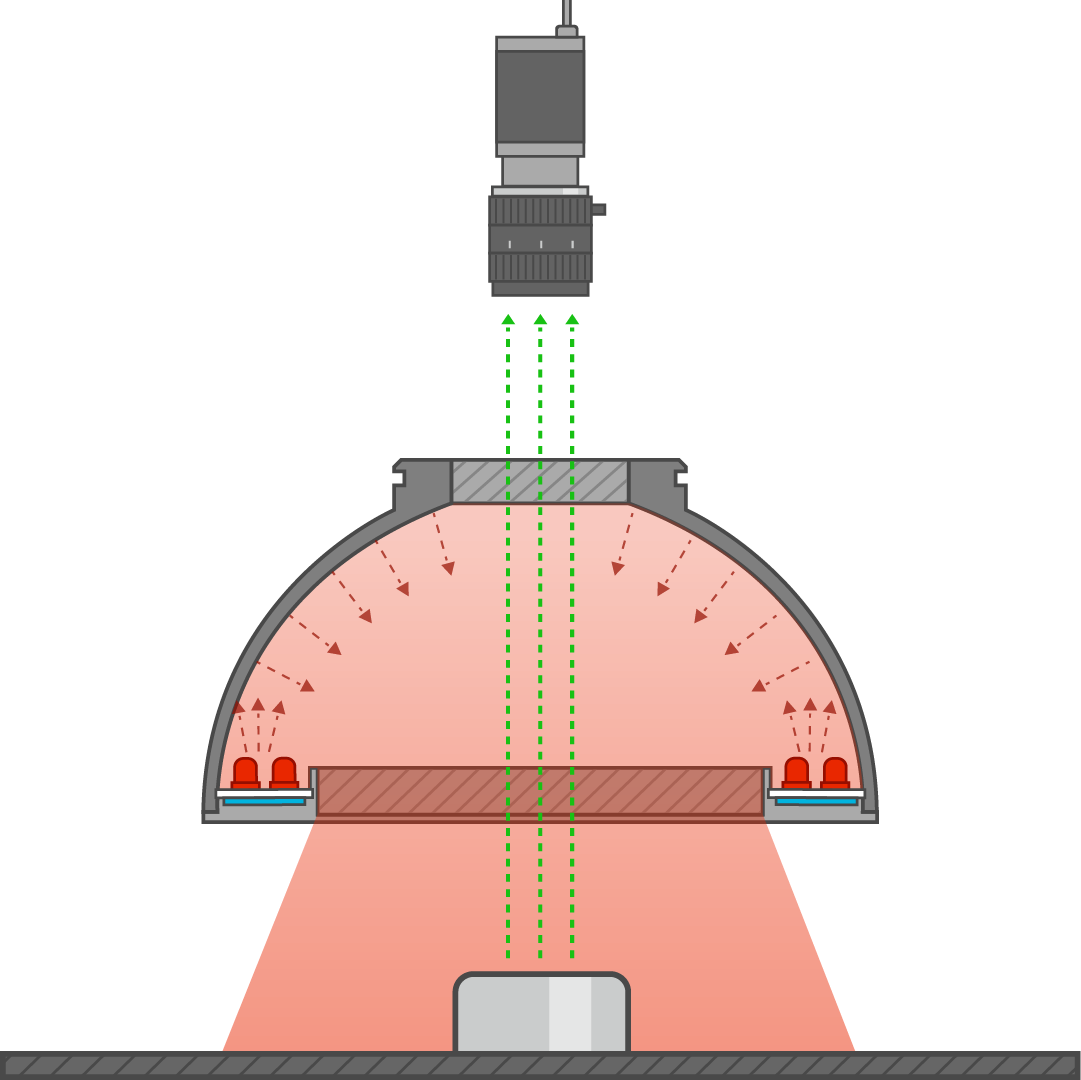

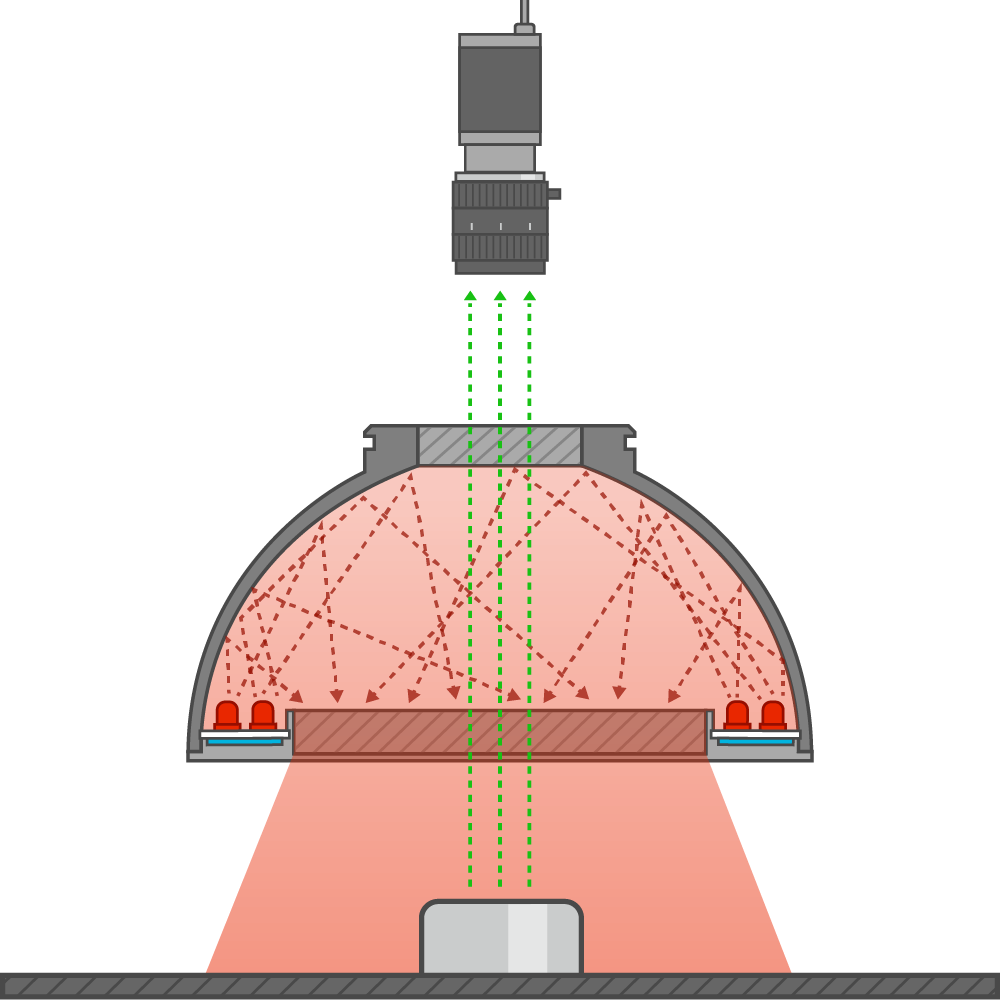

Illumination Structure & Examples
[ ADL Series ]
The lighting in used for diffusing light and creating soft images with no shadows, making it suitable for objects with high reflectivity, such as glass.
After applying dome lighting, it uniformly illuminates the curved areas of the product's surface, allowing for images that are easy to inspect.
Object
ARF
ADL
Product Specification
Product List
Model | Color | Dimension | Power Consumption(W) | Input Voltage(DC V) | |
| ADL3-100 | IR/R/G/B/W/UV | W(mm) : 110, D(mm) : 30, H(mm) : 54 | IR : 7.2 / W : 24 R/G/B/UV : 16.8 | IR/R : 12 G/B/W/UV : 12/24 |  |
| ADL3-150 | IR/R/G/B/W/UV | W(mm) : 150, D(mm) : 40, H(mm) : 80.5 | IR : 10.8 / R : 16.8 G/B/UV : 25.2 W : 36 | IR/R : 12 G/B/W/UV : 12/24 |  |
| ADL3-200 | IR/R/G/B/W/UV | W(mm) : 200, D(mm) : 50, H(mm) : 133 | IR : 18 / W : 60 R/G/B/UV : 42 | IR/R : 12 G/B/W/UV : 12/24 |  |
| ADL3-8420 | IR/R/G/B/W/UV | W(mm) : 84, D(mm) : 20, H(mm) : 43.9 | IR : 7.2 / W : 24 R/G/B/UV : 16.8 | IR/R : 12 G/B/W/UV : 12/24 |  |
