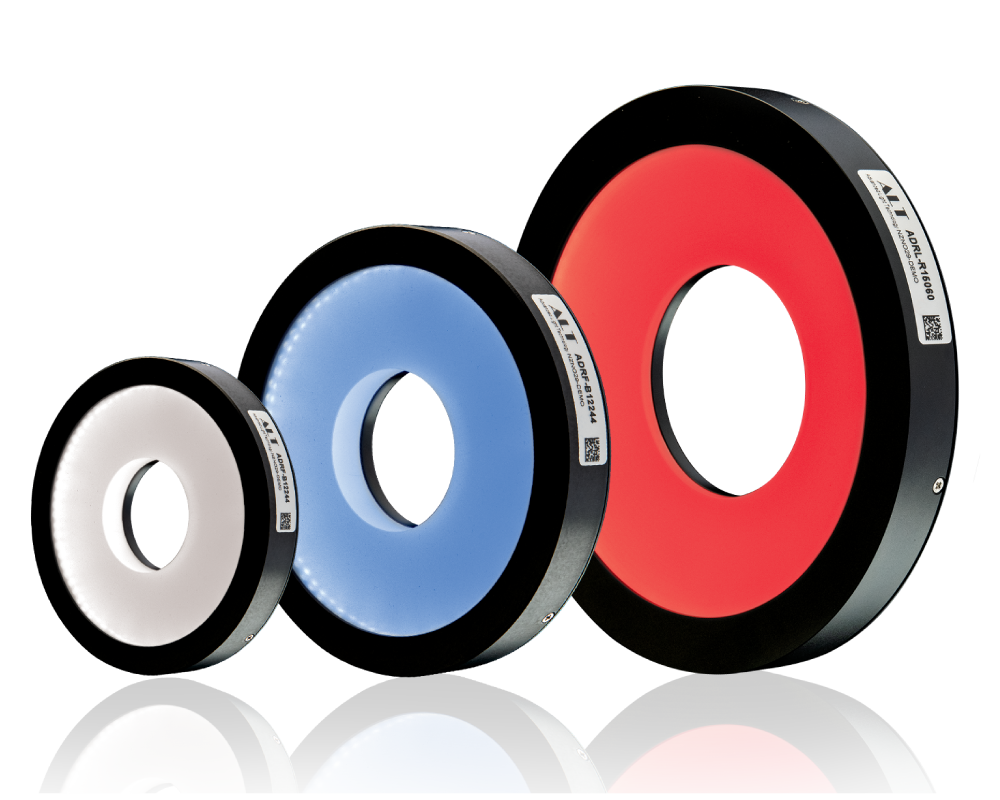

Shadowless Diffused Ring Light
ADRL / ADRF
This product significantly improves uniformity compared to direct lighting by using indirect lighting.
Light is scattered by a light diffusion ring, which illuminates from the side and is reflected to the object, resulting in a shadow-free image.
By using a specially processed light diffusion plate, this product provides very uniform light to the object, allowing for precise inspection of markings on smooth surfaces as well as detecting fractures and other defects.
Using indirect diffuse light helps to suppress halation, which can occur on high-reflectivity surfaces like plastic.
[ Application ]

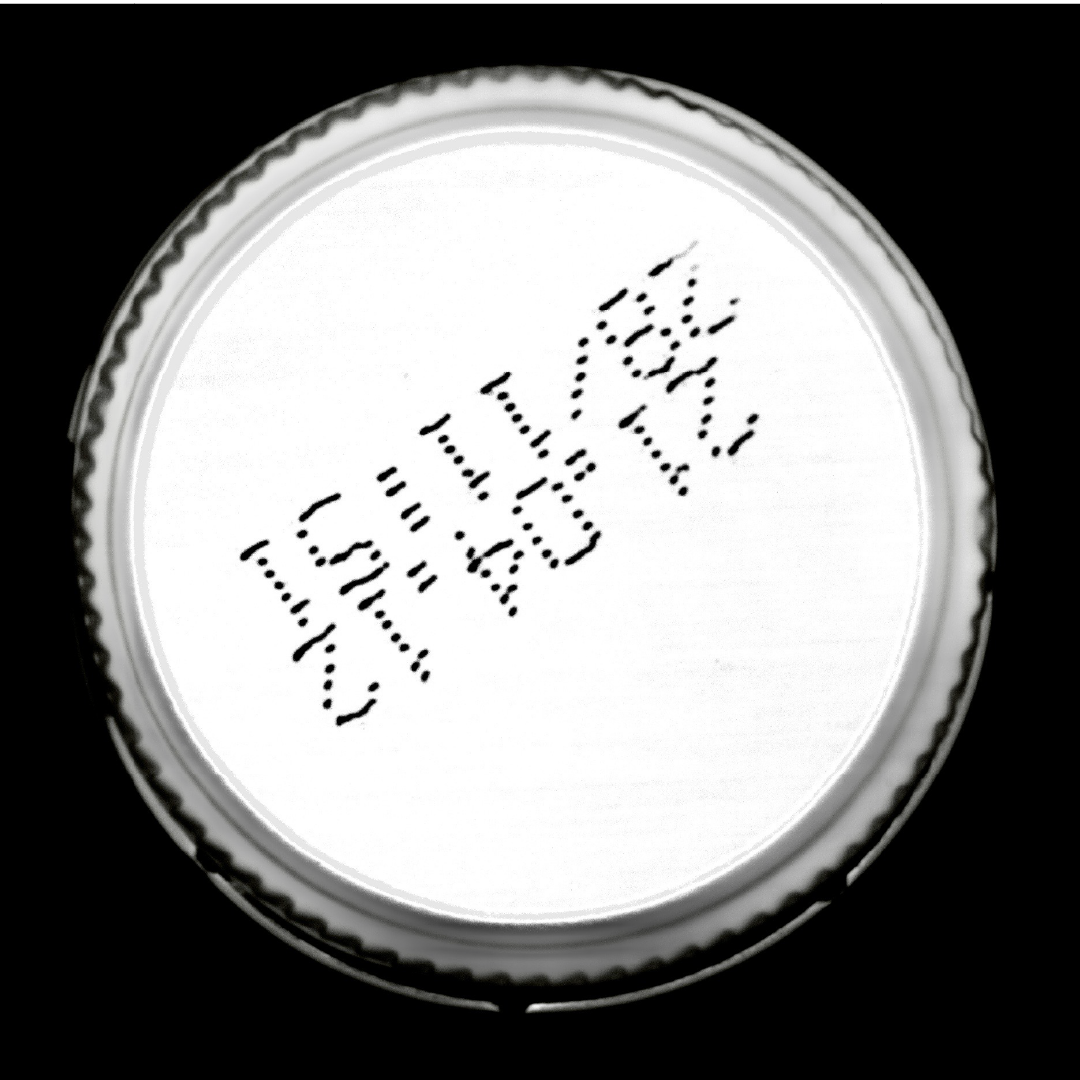

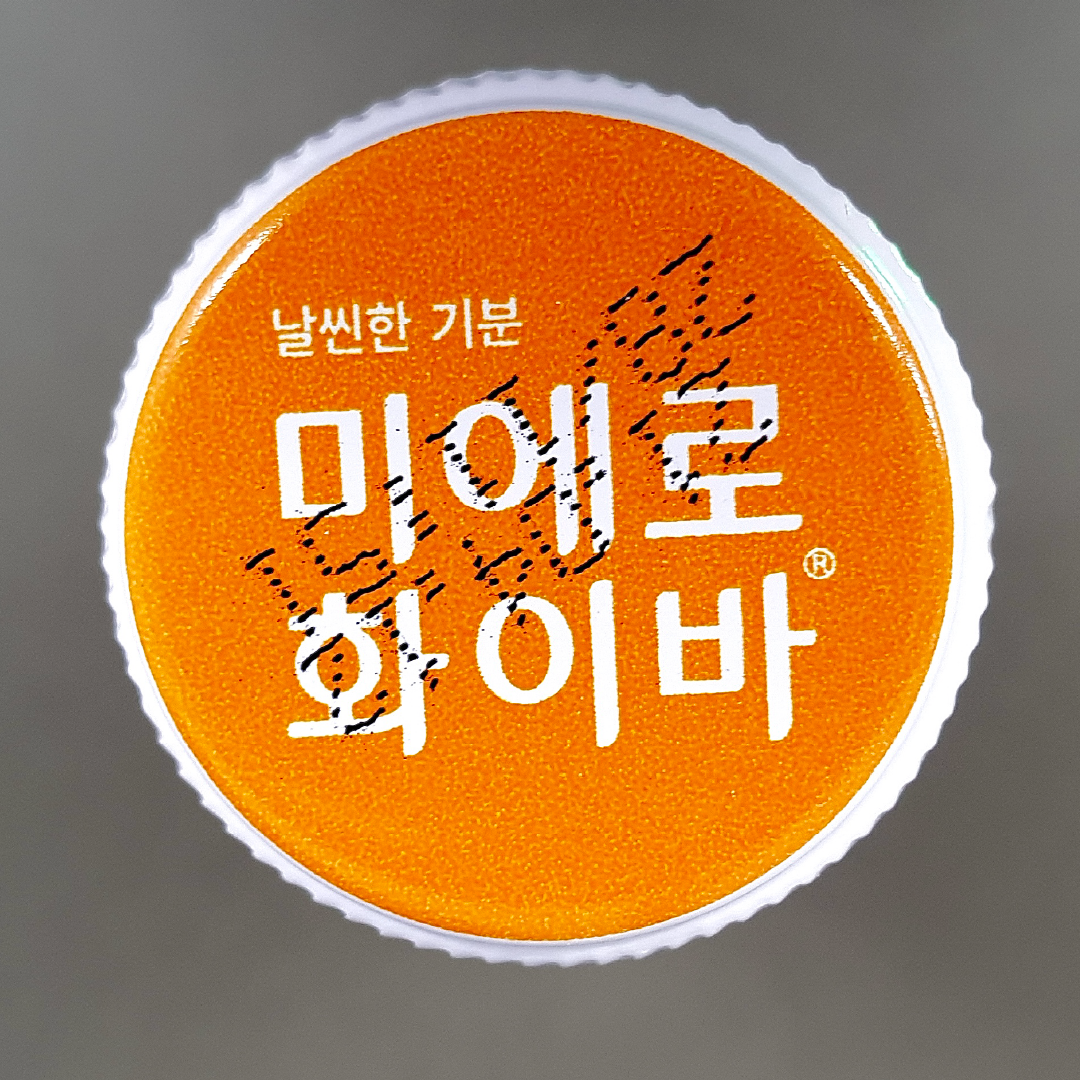

Various shape recognition, surface inspection of metal products, foreign object detection in plastic caps, etc.
Shadowless Diffused Ring Light
Illumination Structure · Examples

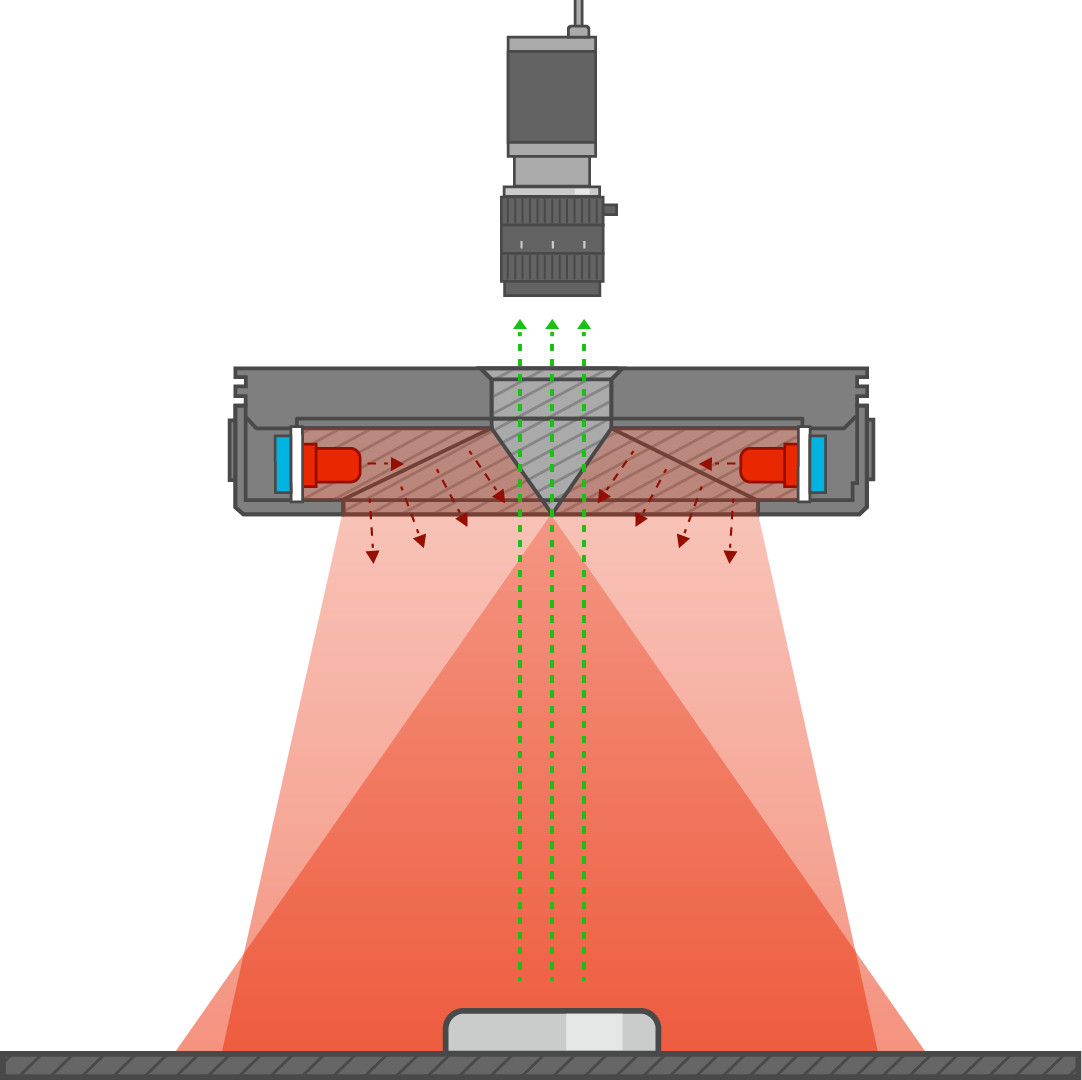

[ ADRL Series ]
This lighting significantly improves uniformity compared to standard ARL.
Since it has an incident angle, it is necessary to check the available LWD.
It allows for obtaining uniform images from highly reflective or glossy detection objects.
Object
ADRL

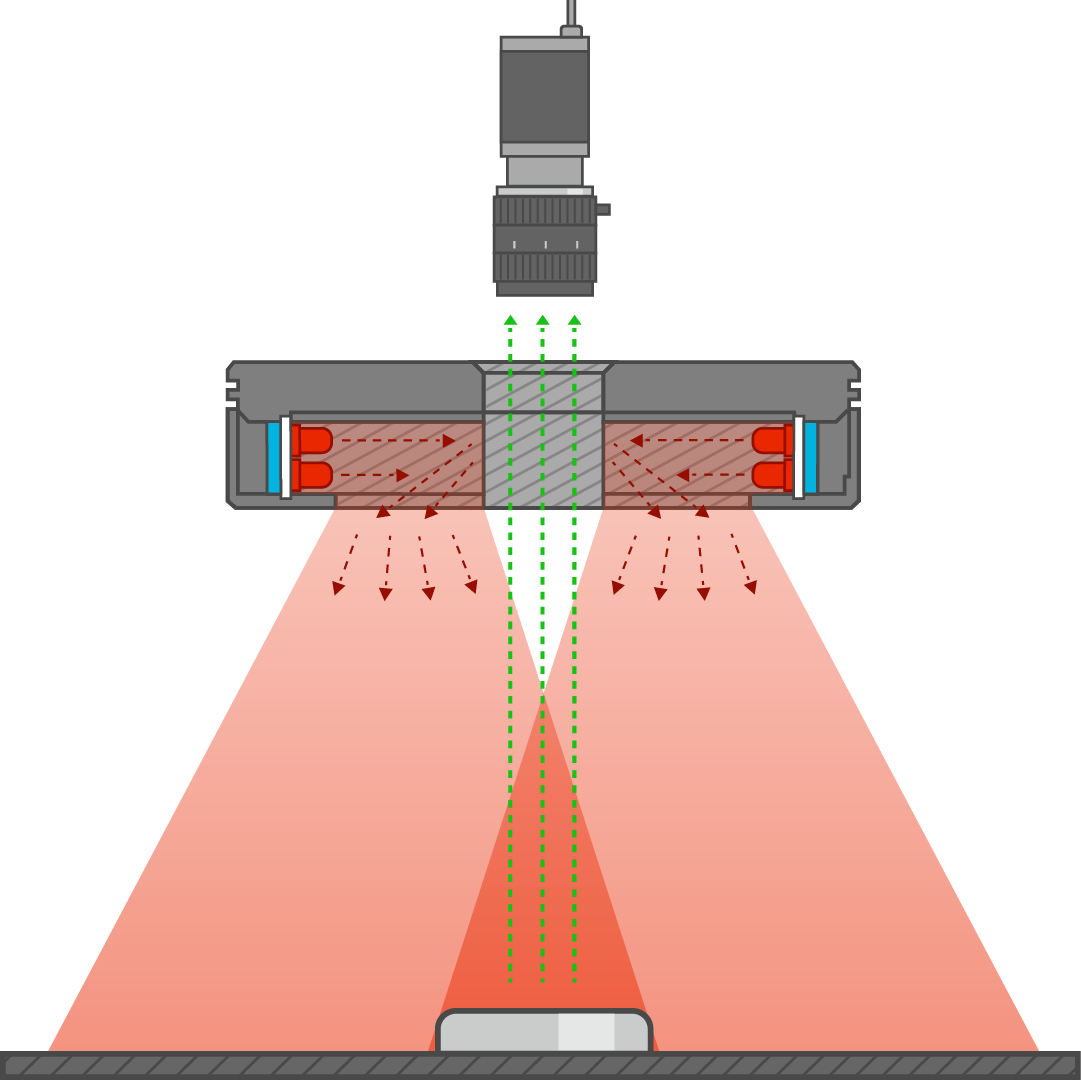

[ ADRF Series ]
This lighting significantly improves uniformity compared to standard ARF.
It is a flat-type design, making it applicable even with a long LWD.
It enables obtaining uniform images from detection objects with high gloss or significant reflectivity.
Shadowless Diffused Ring Light
ADRL / ADRF
This product significantly improves uniformity compared to direct lighting by using indirect lighting.
Light is scattered by a light diffusion ring, which illuminates from the side and is reflected to the object, resulting in a shadow-free image.
By using a specially processed light diffusion plate, this product provides very uniform light to the object, allowing for precise inspection of markings on smooth surfaces as well as detecting fractures and other defects.
Using indirect diffuse light helps to suppress halation, which can occur on high-reflectivity surfaces like plastic.
[ Application ]
Various shape recognition, surface inspection of metal products, foreign object detection in plastic caps, etc.
Shadowless Diffused Ring Light
Illumination Structure & Examples
[ ADRL Series ]
This lighting significantly improves uniformity compared to standard ARL.
Since it has an incident angle, it is necessary to check the available LWD.
It allows for obtaining uniform images from highly reflective or glossy detection objects.
Object
ADRL
[ ADRF Series ]
This lighting significantly improves uniformity compared to standard ARF.
It is a flat-type design, making it applicable even with a long LWD.
It enables obtaining uniform images from detection objects with high gloss or significant reflectivity.
Product Specifications
Product List
Model | Color | Dimension | Power Consumption(W) | Input Voltage(DC V) | |
| ADRF-5210 | IR/R/G/B/W/UV | Outer(ø) : 52, Inner(ø) : 10, H(mm) : 11 | IR/R : 0.9 G/B/W/UV : 1.8 | IR/R : 12 G/B/W/UV : 12/24 |  |
| ADRF-7420 | IR/R/G/B/W/UV | Outer(ø) : 74, Inner(ø) : 20, H(mm) : 18.5 | IR/R : 2.88 G/B/W/UV : 5.76 | IR/R : 12 G/B/W/UV : 12/24 |  |
| ADRF-12233 | IR/R/G/B/W/UV | Outer(ø) : 122, Inner(ø) : 33, H(mm) : 18.5 | IR/R : 4.68 G/B/W/UV : 9.36 | IR/R : 12 G/B/W/UV : 12/24 |  |
| ADRF-14070 | IR/R/G/B/W/UV | Outer(ø) : 140, Inner(ø) : 70, H(mm) : 17 | IR/R : 5.4 G/B/W/UV : 10.8 | IR/R : 12 G/B/W/UV : 12/24 |  |
| ADRF-15060 | IR/R/G/B/W/UV | Outer(ø) : 150 Inner(ø) : 60, H(mm) : 18 | IR/R : 5.76 G/B/W/UV : 11.52 | IR/R : 12 G/B/W/UV : 12/24 |  |
