ALT- RSD Series
PWM Controller
■ Supports PWM Lighting Brightness Control
■ 1 to 8 Channel Lighting Output Ports
■ 256 Levels of Lighting Brightness Adjustment
■ RS-232C(Baud rate : 9,600~19,200bps)
■ 8-bit On · Off Control for Each Channel I/O
ALT- RSD Series

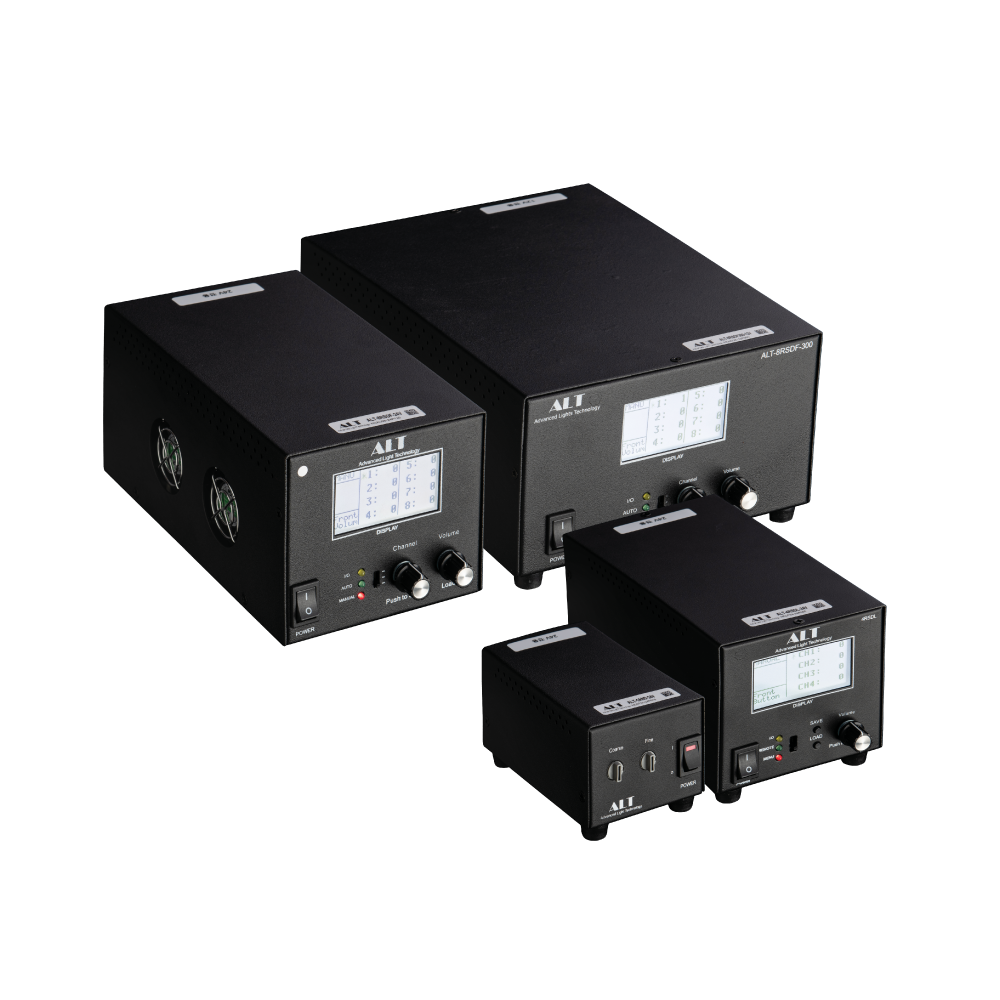

Product Lineup

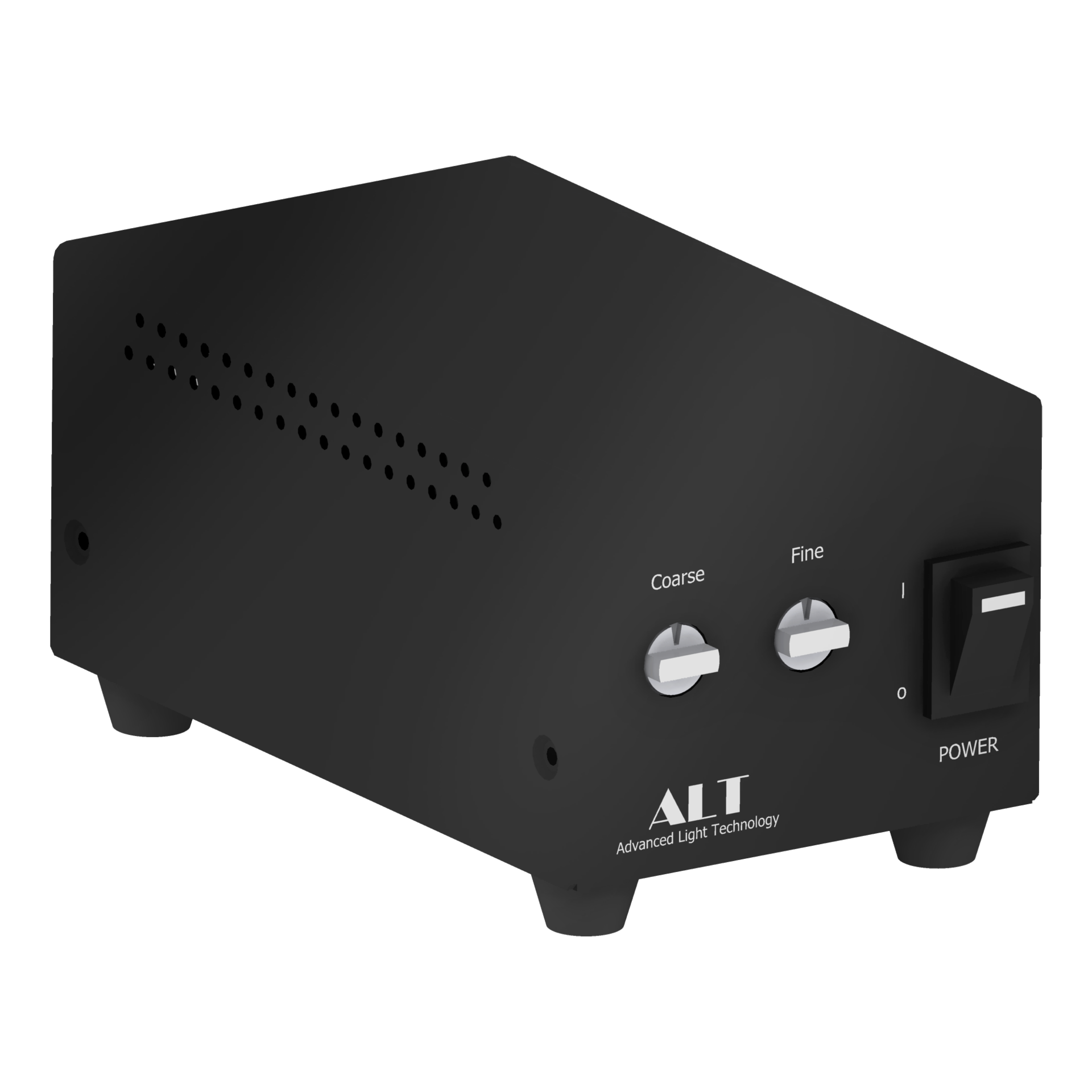

[ ALT-1AND ]

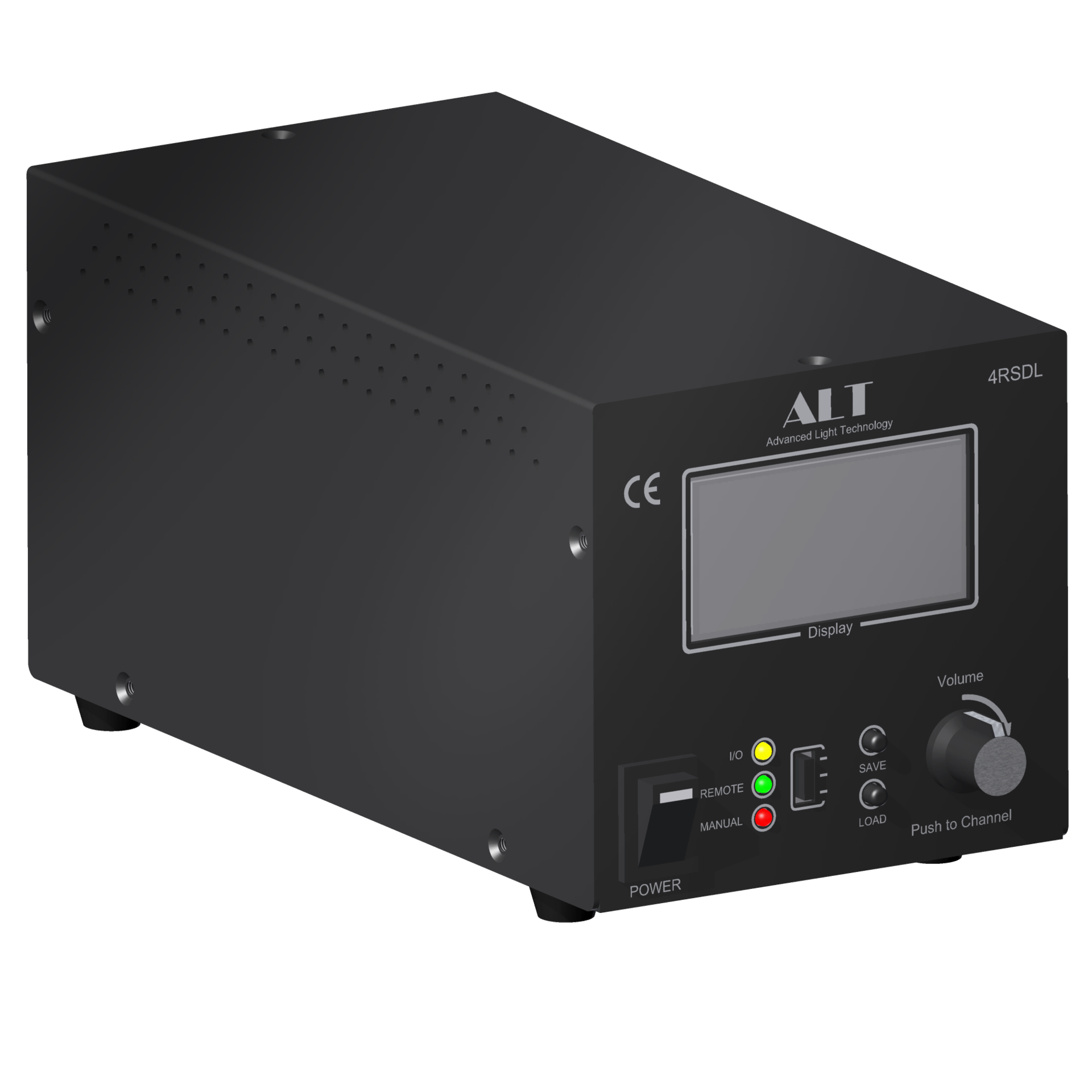

[ ALT-4RSDL ]

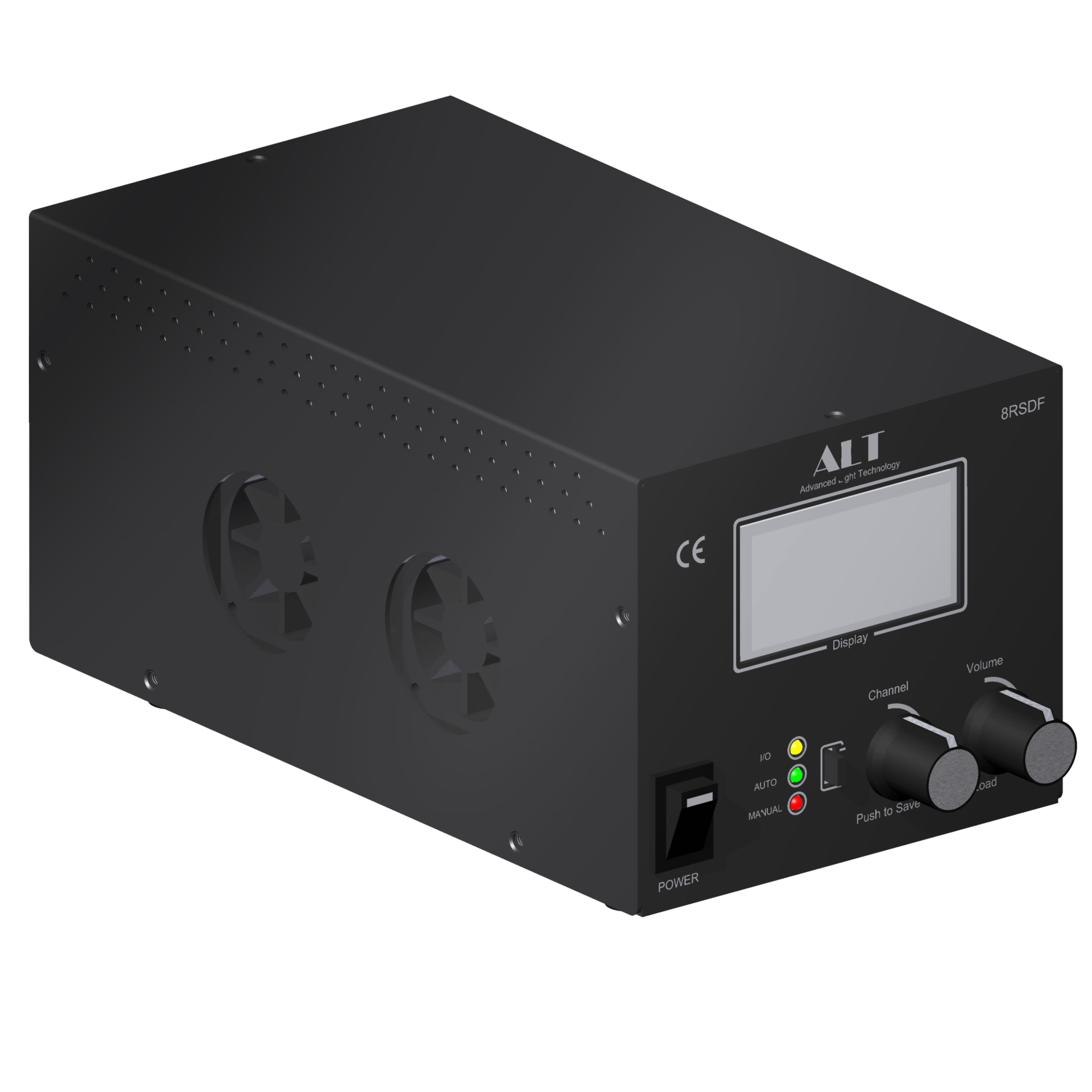

[ ALT-8RSDF ]
ALT- RSD Series
PWM Controller
■ Supports PWM Lighting Brightness Control
■ 1 to 8 Channel Lighting Output Ports
■ 256 Levels of Lighting Brightness Adjustment
■ RS-232C(Baud rate : 9,600~19,200bps)
■ 8-bit On · Off Control for Each Channel I/O
ALT- RSD Series
Product Lineup
[ ALT-1AND ]
[ ALT-4RSDL ]
[ ALT-8RSDF ]
Model | Dimension | Output Channel(CH) | Power Consumption(W) | |
| ALT-2RSDL | W(mm) : 97, D(mm) : 190, H(mm) : 100 | 2 | 60 |  |
