Product

Multi Angle Direct Light

AML

The hemispherical dome-shaped lighting uses a flexible substrate, enabling LED light sources to illuminate the target object directly, producing shadow-free images.

It can be separated by channels, allowing the mixing of different wavelengths at various angles. This makes it versatile as a composite lighting solution suitable for diverse inspection types.

[ Application ]

Surface scratch inspection, line scan dome lighting, aluminum welding inspection, and curved product inspection—ideal for cases requiring multiple wavelengths and various optical configurations in a single lighting solution.

Multi Angle Direct Light

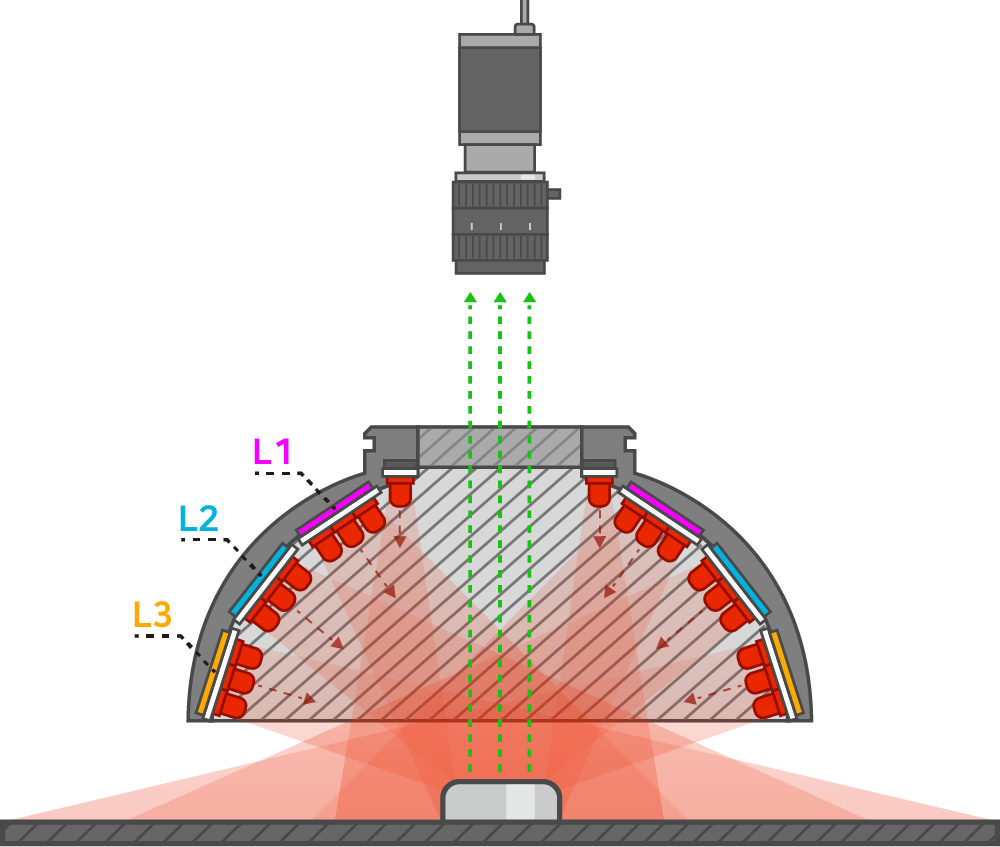

Illumination Structure · Examples

[ AML Series ]

LEDs are arranged at various angles, enabling light to be emitted from multiple directions, allowing even illumination on objects with complex shapes.

Object

AML-ARL

AML-LA

AML-FLA

Product

Multi Angle Direct Light

AML

The hemispherical dome-shaped lighting uses a flexible substrate, enabling LED light sources to illuminate the target object directly, producing shadow-free images.

It can be separated by channels, allowing the mixing of different wavelengths at various angles. This makes it versatile as a composite lighting solution suitable for diverse inspection types.

[ Application ]

Surface scratch inspection, line scan dome lighting, aluminum welding inspection, and curved product inspection—ideal for cases requiring multiple wavelengths and various optical configurations in a single lighting solution.

Multi Angle Direct Light

Illumination Structure & Examples

[ AML Series ]

LEDs are arranged at various angles, enabling light to be emitted from multiple directions, allowing even illumination on objects with complex shapes.

Object

AML-ARL

AML-LA

AML-FLA

Product Specifications

Product List

Model
Color
Dimension
Power Consumption(W)
Input Voltage(DC V)

AML-30FV-5228RM
IR/R/G/B/W/UV
W(mm) : 68, D(ø) : 52, H(mm) : 63.5
[IR/R]
AFV : 1.26, ARM : 1.62
[G/B/W/UV]
AFV : 2.52, ARM : 3.24
IR/R :12
G/B/W/UV : 12/24
AML-30FV-8420DL
IR/R/G/B/W/UV
W(mm) : 84.5, D(ø) : 84, H(mm) : 87.9
[IR]
AFV : 1.26, ADL : 1.62
[R]
AFV : 1.26, ADL : 2.7
[G/B/W/UV]
AFV : 2.52, ADL : 5.4
IR/R :12
G/B/W/UV : 12/24
AML-40FV2-7435RM
IR/R/G/B/W/UV
W(mm) : 87, D(ø) : 74, H(mm) : 82
[IR/R]
AFV : 2.16, ADL : 4.32/4.8
[G/B/W/UV]
AFV : 3.24, ADL : 6.48
IR/R : 12
G/B/W/UV : 12/24
AML-50FV2-100DL
IR/R/G/B/W/UV
W(mm) : 117, D(ø) : 110, H(mm) : 112.5
[IR/R]
AFV : 2.88, ADL : 3.24
[G/B/W/UV]
AFV : 5.76, ADL : 6.48
IR/R : 12
G/B/W/UV : 12/24
AML-50FV2-9050RM
IR/R/G/B/W/UV
W(mm) : 107, D(ø) : 90, H(mm) : 86.5
[IR/R]
AFV : 2.88, ARM : 4.32
[G/B/W/UV]
AFV : 5.76, ARM : 8.64
IR/R : 12
G/B/W/UV : 12/24
AML-50FV2-10068LA
IR/R/G/B/W/UV
W(mm) : 112, D(ø) : 100, H(mm) : 81.5
[IR/R]
AFV : 2.88, ARL-LA : 5.4
[G/B/W/UV]
AFV : 5.76, ARL-LA : 10.8
IR/R : 12
G/B/W/UV : 12/24
