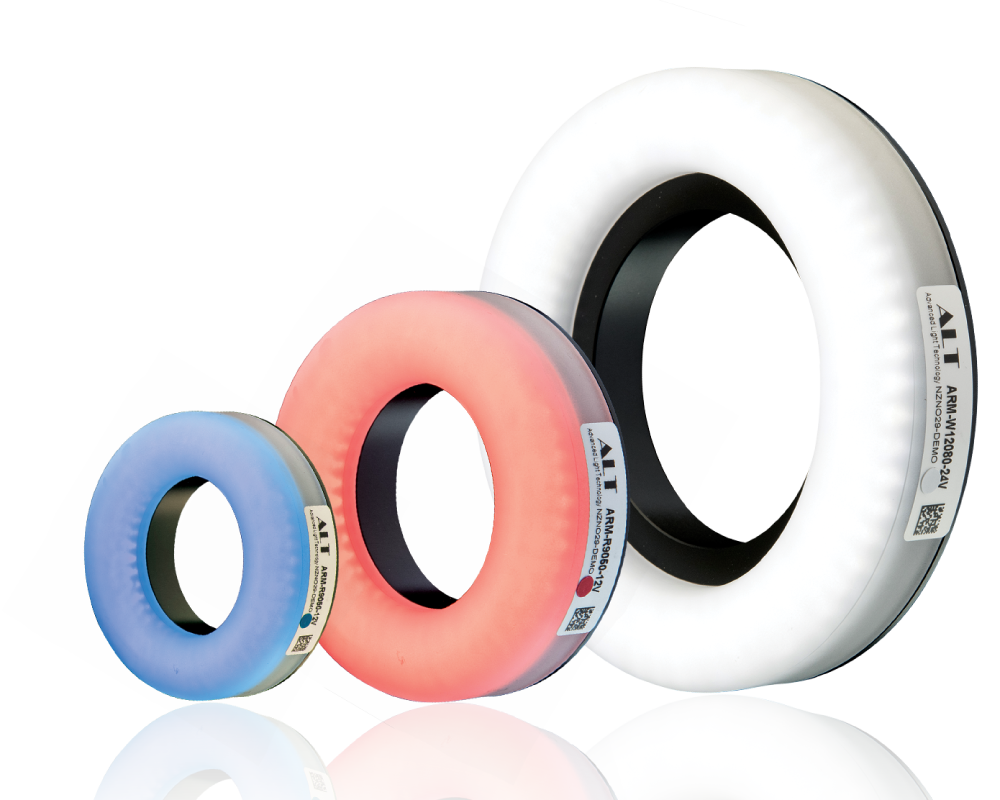

Diffused Multi Angle Ring Light
ARM
This is a multi-functional lighting system that allows for the acquisition of various optimal images simply by adjusting the height of the light.
It features a unique design with a diffuser plate that provides a 180-degree illumination angle. This combined lighting system incorporates the characteristics of both a standard ring light and a low-angle light, allowing diverse image types to be captured with a single light source.
[ Application ]
Component inspection, print inspection, character recognition, appearance inspection, various edge detection, etc.
Diffused Multi Angle Ring Light
Illumination Structure · Examples

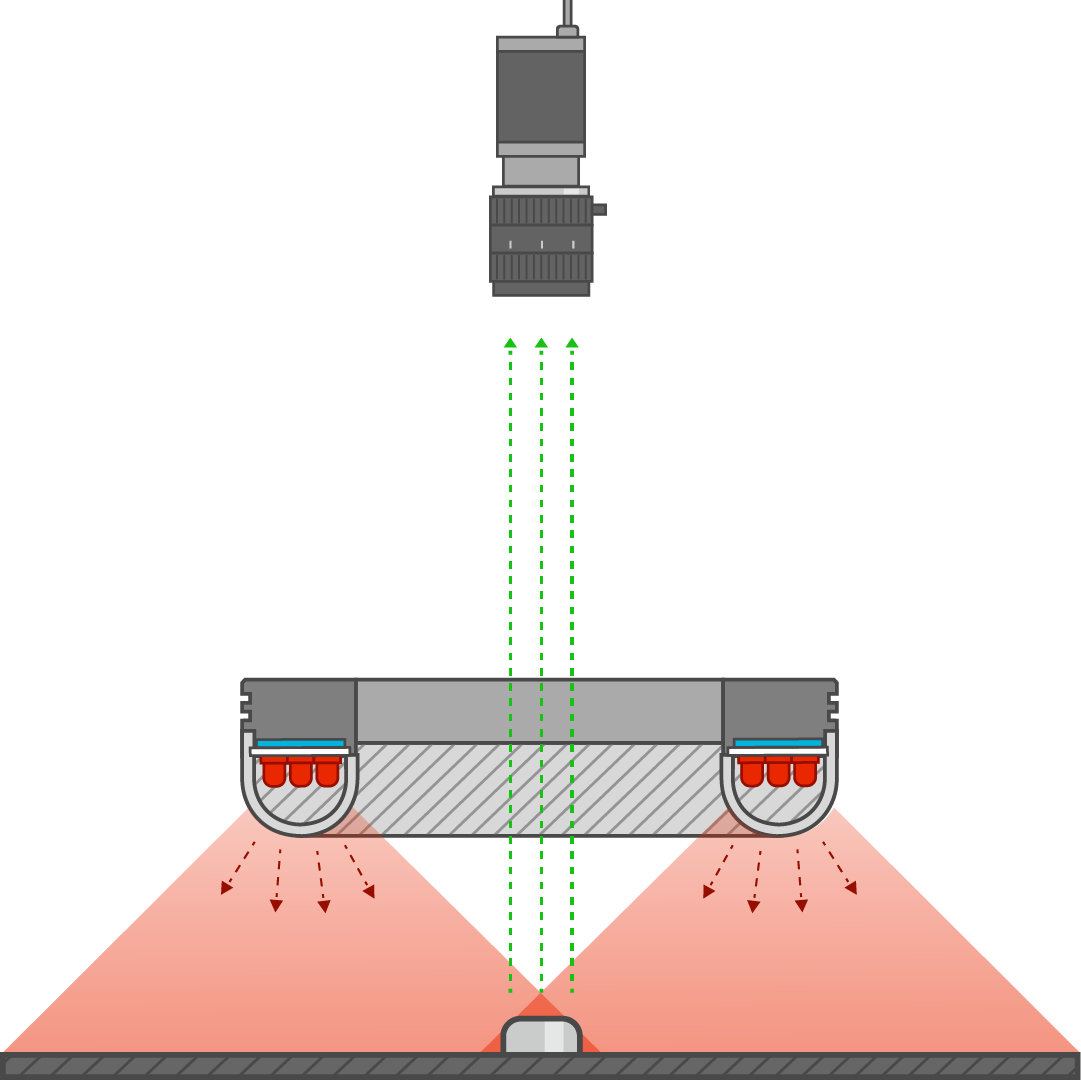

[ ARM_Lighting height 20mm ]
When installed close to the object, it can capture images with the characteristics of Low Angle lighting.
Object
ARM_Lighting height 20m

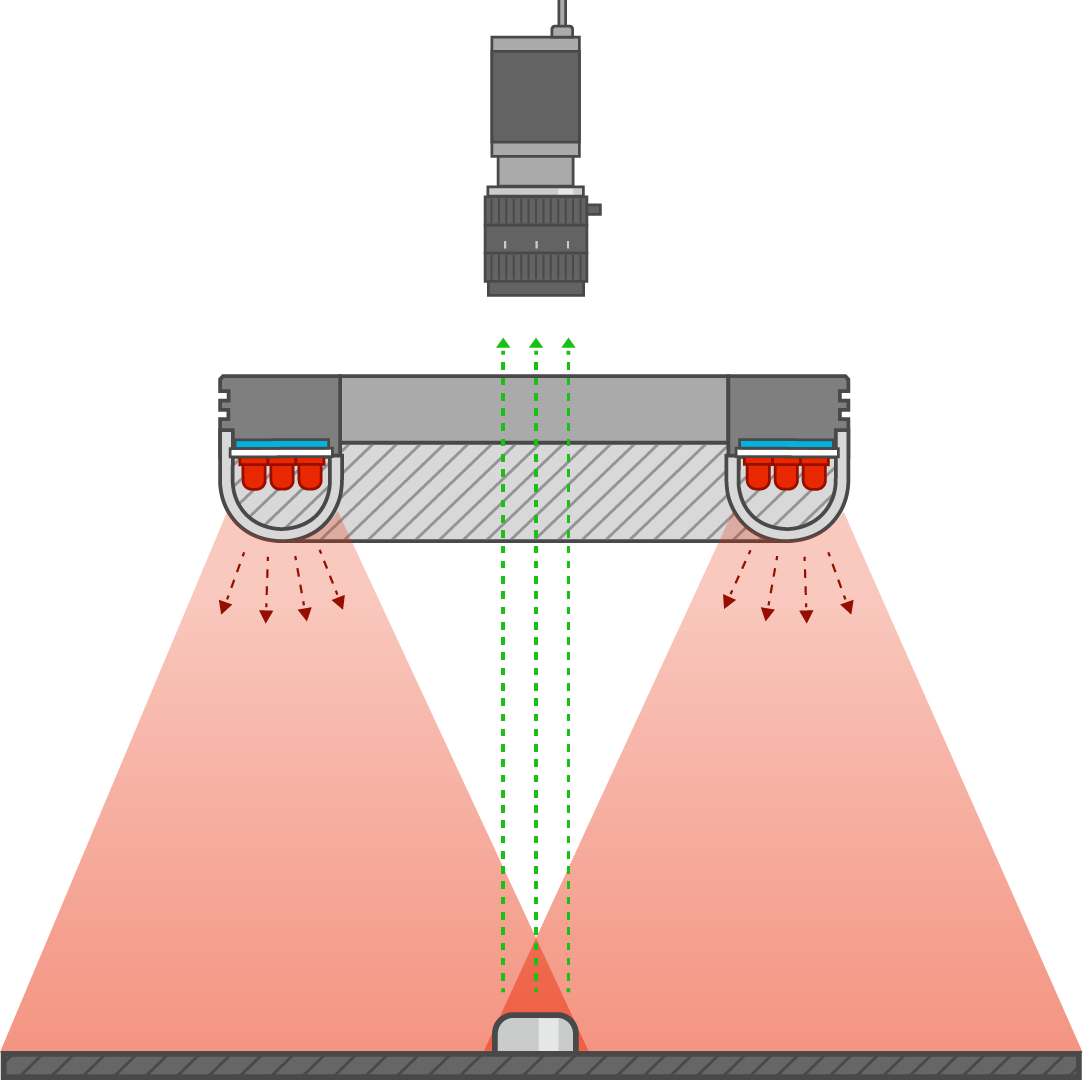

[ ARM_Lighting height 100mm ]
When installed at a distance from the object, it can capture images with the characteristics of a standard ring light.
Object
ARM_Lighting height 100m
Diffused Multi Angle Ring Light
ARM
This is a multi-functional lighting system that allows for the acquisition of various optimal images simply by adjusting the height of the light.
It features a unique design with a diffuser plate that provides a 180-degree illumination angle. This combined lighting system incorporates the characteristics of both a standard ring light and a low-angle light, allowing diverse image types to be captured with a single light source.
[ Application ]
Component inspection, print inspection, character recognition, appearance inspection, various edge detection, etc.
Diffused Multi Angle Ring Light
Illumination Structure & Examples
[ ARM_Lighting height 20mm ]
When installed close to the object, it can capture images with the characteristics of Low Angle lighting.
Object
ARM_조명 높이 20mm
[ ARM_Lighting height 100mm ]
When installed at a distance from the object, it can capture images with the characteristics of a standard ring light.
Object
ARM_조명 높이 100mm
Product Specifications
Product List
Model | Color | Dimension | Power Consumption(W) | Input Voltage(DC V) | |
| ARM-4825 | IR/R/G/B/W/UV | Outer(ø) : 48, Inner(ø) : 25, H(mm) : 19.5 | IR/R : 1.62 G/B/W/UV : 3.24 | IR/R : 12 G/B/W/UV : 12/24 |  |
| ARM-5228 | IR/R/G/B/W/UV | Outer(ø) : 52, Inner(ø) : 28, H(mm) : 19.5 | IR/R : 1.62 G/B/W/UV : 3.24 | IR/R : 12 G/B/W/UV : 12/24 |  |
| ARM-7435 | IR/R/G/B/W/UV | Outer(ø) : 74, Inner(ø) : 34, H(mm) : 27 | IR/R : 3.24 G/B/W/UV : 6.48 | IR/R : 12 G/B/W/UV : 12/24 |  |
| ARM-9050 | IR/R/G/B/W/UV | Outer(ø) : 90, Inner(ø) : 50, H(mm) : 27 | IR/R : 4.32 G/B/W/UV : 8.64 | IR/R : 12 G/B/W/UV : 12/24 |  |
| ARM-12080 | IR/R/G/B/W/UV | Outer(ø) : 120, Inner(ø) : 65, H(mm) : 27 | IR/R : 5.4 G/B/W/UV : 10.8 | IR/R : 12 G/B/W/UV : 12/24 |  |
| ARM-14070 | IR/R/G/B/W/UV | Outer(ø) : 140, Inner(ø) : 70, H(mm) : 35 | IR/R : 9.9 G/B/W/UV : 19.8 | IR/R : 12 G/B/W/UV : 12/24 |  |
