ALTSYSTEM LED Light

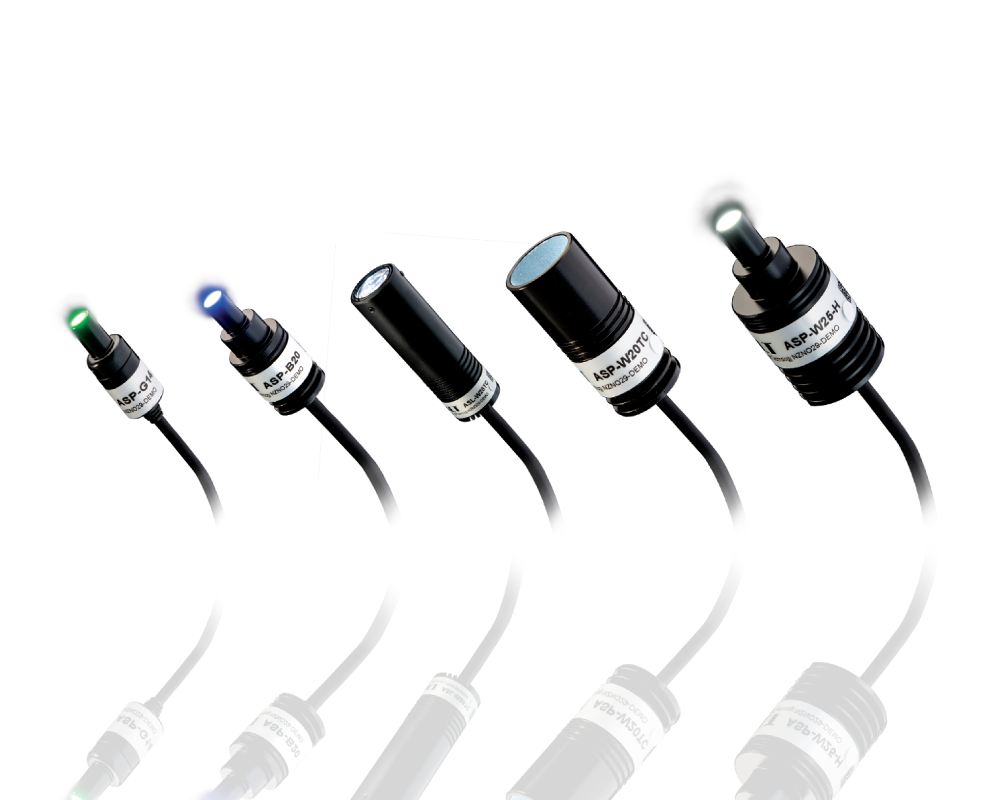

▶ ASP Series

It is a high-intensity spot light that replaces traditional halogen light guides with coaxial lighting directly attached to the lens. Various brightness levels and color options can be selected to suit the application.

▶ ASL Series

Equipped with a condenser lens, this spot light focuses light on specific areas for precise illumination.

The integrated ASL lighting combines the functionality of conventional coaxial lighting and a condenser lens, allowing for concentrated illumination of critical areas.

▶ ASP Series

It is a high-intensity spot light that replaces traditional halogen light guides with coaxial lighting directly attached to the lens. Various brightness levels and color options can be selected to suit the application.

▶ ASL Series

Equipped with a condenser lens, this spot light focuses light on specific areas for precise illumination.

The integrated ASL lighting combines the functionality of conventional coaxial lighting and a condenser lens, allowing for concentrated illumination of critical areas.

Model	Color	Dimension	Power Consumption(W)	Input Voltage(DC V)
ASP-14-V1	IR/W	Outer(ø) : 14, H(mm) : 35	IR : 0.54 W : 0.3	IR/W : 12
ASP-20	IR/R/G/B/W/UV	Outer(ø) : 20, H(mm) : 45	IR : 3.2, R : 2.8 G : 2.7, B/W/UV : 3	IR/R/G/B/W/UV : 5
ASP-20TC	R/G/B/W/UV	Outer(ø) : 20, H(mm) : 45	R : 1.9, G : 2.6 B : 2.7, W : 3, UV : 2.3	R/G/B/W/UV : 5
ASP-25-H	IR/R/G/B/W/UV	Outer(ø) : 25, H(mm) : 52	IR : 2.4, R : 2, G : 2.7 B: 2.8, W : 4.1, UV : 1.2	IR/R/G/B/W/UV : 5
ASP-W60-12V	W	Outer(ø) : 60, H(mm) : 64.5	W : 18.4	W : 12
ASP-RGBW40-H	R/G/B/W	Outer(ø) : 40, H(mm) : 65	R : 1.89, G : 2.7 B : 2.68, W : 2.67	R/G/B/W : 5
