Product

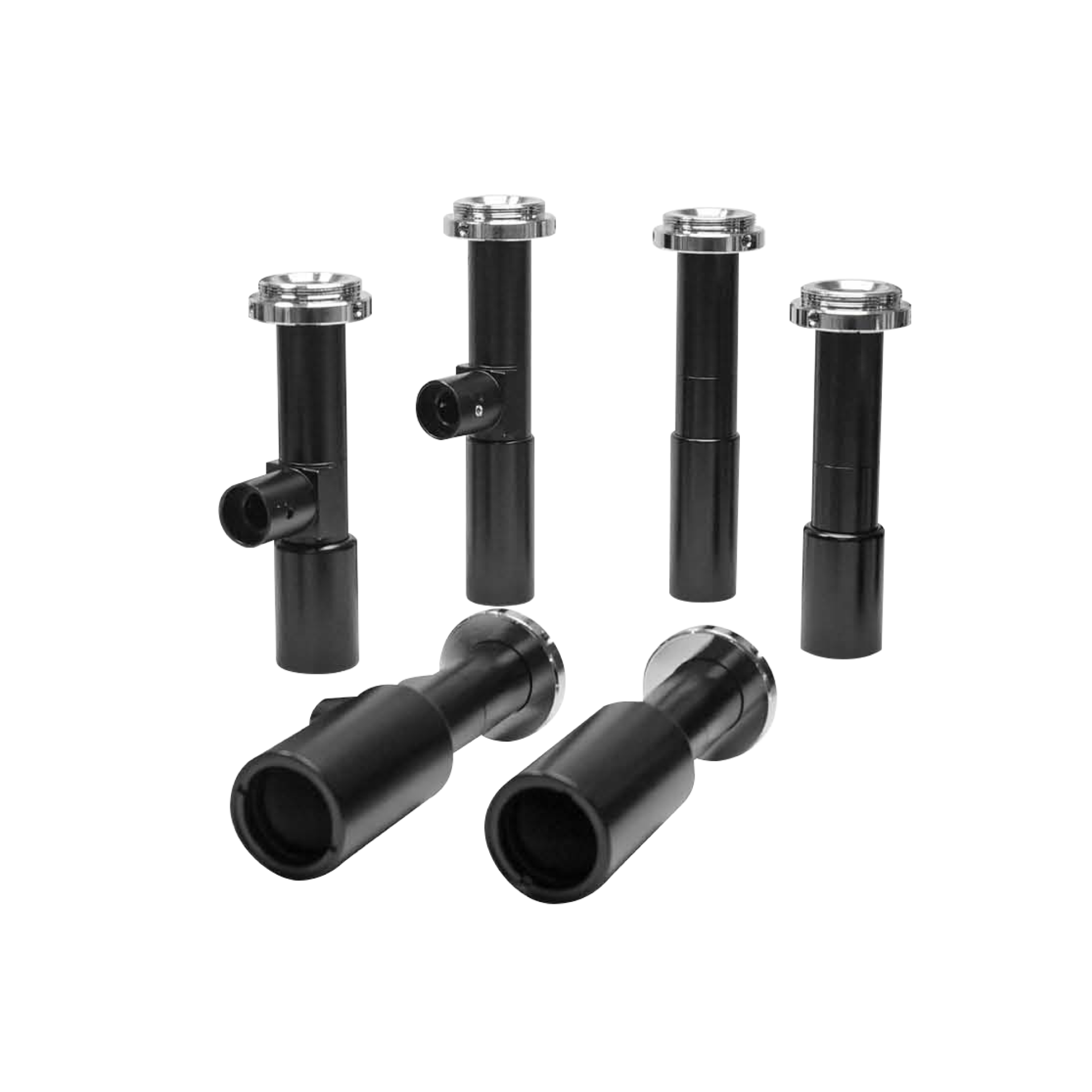

Telecentric Lens

ATC Series

■ Customizable products available for different magnifications and working distances (W.D.)

■ Internal coaxial illumination insertable

■ Compact size and easy usability

ATC Series

Product Lineup

[ ATC-ST Sensor Dia 9mm Series ]

  • Compatible with sensors up to a 9mm (1/1.8") diagonal
  • Customizable products available for different magnifications and working distances (W.D.)
  • Internal coaxial illumination insertable
  • Compact, easy to use, and relatively cost-effective
  • Ideal for alignment and surface inspection
  • Relatively deep depth of field (D.O.F.)
  • Supports cameras up to 1/1.8"

[ ATC-HR Sensor Dia 11mm Series ]

  • Compatible with sensors up to an 11mm (2/3") diagonal
  • Customizable products available for different magnifications and working distances (W.D.)
  • Internal coaxial illumination insertable
  • Easy to use and designed for high resolution, enabling precise detection
  • Excellent F/# (lens brightness)
  • Supports cameras up to 2/3"
  • Offers outstanding resolution, but has a relatively shorter depth of field (D.O.F.) compared to the 9mm series (resolution and D.O.F. are inversely related)

ATC-HR Series

ATC-5M Series

[ ATC-HR Sensor Dia 11mm Series ]

  • High resolving power series available for different magnifications and working distances (W.D.)
  • Internal coaxial illumination insertable
  • Easy to use, designed for a small pixel size target of 3.45μm
  • Excellent F/# (lens brightness) with outstanding contrast and high precision for superior image quality
  • Supports cameras up to 2/3"
  • Provides high resolution, but has a relatively shorter depth of field (D.O.F.) compared to the 9mm & 11mm series (resolution and D.O.F. are inversely related)

Product

Telecentric Lens

ATC Series

■ Customizable products available for different magnifications and working distances (W.D.)

■ Internal coaxial illumination insertable

■ Compact size and easy usability

ATC Series

Product Lineup

[ ATC-ST Sensor Dia 9mm Series ]

  • Compatible with sensors up to a 9mm (1/1.8") diagonal
  • Customizable products available for different magnifications and working distances (W.D.)
  • Internal coaxial illumination insertable
  • Compact, easy to use, and relatively cost-effective
  • Ideal for alignment and surface inspection
  • Relatively deep depth of field (D.O.F.)
  • Supports cameras up to 1/1.8"

[ ATC-HR Sensor Dia 11mm Series ]

  • Compatible with sensors up to an 11mm (2/3") diagonal
  • Customizable products available for different magnifications and working distances (W.D.)
  • Internal coaxial illumination insertable
  • Easy to use and designed for high resolution, enabling precise detection
  • Excellent F/# (lens brightness)
  • Supports cameras up to 2/3"
  • Offers outstanding resolution, but has a relatively shorter depth of field (D.O.F.) compared to the 9mm series (resolution and D.O.F. are inversely related)

ATC-HR Series

ATC-5M Series

[ ATC-5M Sensor Dia 11mm Series ]

  • High resolving power series available for different magnifications and working distances (W.D.)
  • Internal coaxial illumination insertable
  • Easy to use, designed for a small pixel size target of 3.45μm
  • Excellent F/# (lens brightness) with outstanding contrast and high precision for superior image quality
  • Supports cameras up to 2/3"
  • Provides high resolution, but has a relatively shorter depth of field (D.O.F.) compared to the 9mm & 11mm series (resolution and D.O.F. are inversely related)

Product Specifications

Product List

◈ ATC-Sensor Dia 9mm(1/1.8") W.D. 65m

Model
Mag
W.D(mm)
Resolution(um)
N.A
Effective F/#
D.O.F(um)
ATC0.37X-66-9
0.37X66.536.50.00922011.6mm
ATC0.4X-85-8
0.4X85.521.90.0153136.5mm
ATC0.5X-65/C-9
0.5X6518.80.0178144.48mm
ATC0.8X-65/C-9
0.8X6512.50.026814.91.86mm
ATC1.0X-65/C-9
1.0X6512.50.026818.6
1.48mm
ATC1.5X-65/C-9
1.5X6570.047715.7558
ATC2.0X-65/C-9
2.0X655.20.064515.5310
ATC3.0X-65/C-9
3.0X654.80.069721.5191
ATC4.0X-65/C-9
4.0X654.40.076326.2131
ATC5.0X-65/C-9
5.0X654.40.075733105
ATC6.0X-65/C-9
6.0X654.40.075939.587
ATC8.0X-65/C-9
8.0X654.40.076152.565

◈ ATC-Sensor Dia 9mm(1/1.8") W.D. 110mm

Model
Mag
W.D(mm)
Resolution(um)
N.A
Effective F/#
D.O.F(um)
ATC0.35X-110/C-80.35X11021.30.0157
11.17.24mm
ATC0.37X-110/C-9
0.37X110270.0124
14.98.7mm
ATC0.5X-110/C-9
0.5X110
19.50.0172
14.54.6mm
ATC0.8X-110/C-9
0.8X110
12.50.0268
14.91.86mm
ATC1.0X-110/C-9
1.0X110
13.90.0241
20.71.65mm
ATC2.0X-110/C-9
2.0X1107.50.0448
22.3446
ATC3.0X-110/C-9
3.0X110
6.10.0547
27.4243
ATC4.0X-110/C-9
4.0X110
5.60.0602
33.2166
ATC5.0X-110/C-9
5.0X110
5.60.06
41.6133
ATC6.0X-110/C-9
6.0X110
5.60.0601
49.9110

◈ ATC-Sensor Dia 11mm(2/3") W.D. 110mm

Model
Mag
W.D(mm)
Resolution(um)
N.A
Effective F/#
D.O.F(um)
ATC0.479X-120/C-11
0.479X120110.016155.23mm
ATC0.5X-110/C-11
0.5X11014.80.0227
113.52mm
ATC0.8X-110/C-11
0.8X11011.10.0303
13.21.65mm
ATC0.84X-110/C-11
0.84X11012.80.0262
161.81mm
ATC1.0X-110/C-11
1.0X1106.80.0495
10.1808
ATC1.2X-100/C-11
1.2X1008.40.04
15833
ATC1.5X-110/C-11
1.5X11070.0477
15.7558
ATC1.76X-106/C-11
1.76X 1067.60.044
20516
ATC2.0X-110/C-11
2.0X 1104.40.0763
13.1262
ATC4.0X-110/C-11
4.0X
1103.70.0896
22.3111
ATC6.0X-110/C-11
6.0X
1103.70.0898
33.474
ATC8.0X-110/C-11
8.0X
1103.70.0898
44.555

◈ ATC-Sensor Dia 11mm(2/3") W.D. 65mm

Model
Mag
W.D(mm)
Resolution(um)
N.A
Effective F/#
D.O.F(um)
ATC0.5x-65/C-HRP-11
0.5X
658.40.03966.3
1mm
ATC0.8X-65/C-HRP-11
0.8X
655.30.0634
6.3
393
ATC1.0X-65/C-HRP-11
1.0X654.80.0694
7.2288
ATC2.0X-65/C-HRP-11
2.0X652.80.119
8.484

◈ ATC-Sensor Dia 11mm(2/3") W.D. 110mm

Model
Mag
W.D(mm)
Resolution(um)
N.A
Effective F/#
D.O.F(um)
ATC0.3X-110/C-HRP-11
0.3X11015.60.021473.1mm
ATC0.3X-130/C-HRP-11
0.3X13015.40.0217
6.93mm
ATC0.5X-110/C-HRP-110.5X110
7.20.0462
5.4864
ATC0.7X-110/C-HRP-11
0.7X1105.20.648
5.4440
ATC1.0X-110/C-HRP-11
1.0X1104.40.07576.6264
ATC2.0X-110/C-HRP-11
2.0X1103.70.09
11.1111

◈ ATC-Long W.D 150&170mm Series

Model
Mag
W.D(mm)
Resolution(um)
N.A
Effective F/#
D.O.F(um)
ATC0.44X-162/C-8
0.44X16219.80.0169
135.37mm
ATC0.5X-156/C-9 0.5X15617.50.0192134.16mm
ATC0.8X-173/C-9
0.8X17311.20.0298
13.41.67mm
ATC1.0X-156/C-9
1.0X1568.80.0381
13.11.04mm
ATC1.2X-173/C-9
1.2X17311.20.0298
20.11.11mm
ATC1.5X-156/C-9 1.5X1568.90.037819.8704
ATC1.6X-173/C-91.6X17311.20.0298
26.8837
ATC2.0X-156/C-9
2.0X1568.80.0378
26.4528
ATC3.0X-156/C-9
3.0X1567.450.045
33293

◈ ATC-Long W.D 200mm Series

Model
Mag
W.D(mm)
Resolution(um)
N.A
Effective F/#
D.O.F(um)
ATC0.58X-275/C-9
0.58X27513.90.0241122.85mm
ATC0.75X-220/C-11
0.75X22090.037110.11.43mm
ATC1.0X-220/C-11
1.0X2207.50.044611.2886
ATC1.5X-220/C-9
1.5X2207.50.044916.7593
ATC2.0X-220/C-9
2.0X2207.40.0454
22440

◈ ATC-Long W.D 300mm Series

Model
Mag
W.D(mm)
Resolution(um)
N.A
Effective F/#
D.O.F(um)
ATC0.44X-335/C-9
0.44X33515.30.022
104.13mm
ATC0.5X-300/C-11
0.5X30018.90.0178
144.48mm
ATC0.6X-356/C-9
0.6X35614.50.023
132.88mm
ATC0.8X-320/C-8
0.8X32011.80.028314.11.76mm
ATC1.0X-300/C-9
1.0X3009.40.0357
141.12mm
ATC1.5X-300/C-9 1.5X30090.0369
20.3721
ATC1.6X-320/C-91.6X320120.0279
28.6893
ATC2.0X-300/C-9
2.0X3009.10.037
27540

◈ ATC-Long W.D 400&500mm Series

Model
Mag
W.D(mm)
Resolution(um)
N.A
Effective F/#
D.O.F(um)
ATC0.383X-500/C-9
0.383X50026.30.0127
158.17mm
ATC0.5X-400/C-9
0.5X400130.0257
9.73.1mm
ATC0.5X-400/C-11
0.5X40018.80.0`178
144.48mm
ATC1.0X-400/C-91.0X40011.50.029
17.21.37mm

◈ ATC-Sensor Dia 18mm(1.1") Series

Model
Mag
W.D(mm)
Resolution(um)
N.A
Effective F/#
D.O.F(um)
ATC0.25X-140-16
2.5X14017.20.01956.44.5mm
ATC0.5X-65/C-18
0.5X6510.70.03181.4mm
ATC0.6X-130-18
0.6X13011.60.029110.31.25mm
ATC0.7X-65/C-18
0.7X657.70.04378718
ATC0.7X-110-16
0.7X1109.60.03510898
ATC1.0X-65/C-18
1.0X655.40.0628352
ATC1.0X-110/C-18
1.0X1105.40.0628352
ATC1.0X-155-18
1.0X15560.05559396
ATC1.5X-65/C-18
1.5X653.60.0948156
ATC1.5X-114-21
1.5X1144.50.07510195
ATC2.0X-65/C-18
2.0X653.40.110110
ATC2.0X-110/C-18
2.0X1103.40.110110

◈ ATC-Sensor Dia 32mm(25M)

Model
Mag
W.D(mm)
Resolution(um)
N.A
Effective F/#
D.O.F(um)
ATC0.63X-130-32
0.63X13080.0427.5831
ATC0.9X-175-32
0.9X1755.40.06257.2391
ATC1.4X-110-32
1.4X1105.50.060811.5258
ATC1.43X-110-32
1.43X1104.70.071510215
ATC1.75X-110-32
1.75X1104.20.079511158
