Product

ADML2-W220-50FV2-420CH

420CH Multi Dome Lighting

A single dome light with 420 individual lighting channels divides the luminous dome surface into 420 segments. This segmentation enables precise illumination of specific microscopic areas on the inspection target, allowing for detailed and accurate image extraction essential for inspection purposes.

■ Capability to Illuminate Specific Areas

■ Program Graphical Integration and Automation

■ RAW Images for Photometric Stereo Preprocessing

■ Minimized High-Cost Burden

■ Reduction of Labor and Time Through Expertise

Strengths of the Product

Features of Product


All-in-One · Compact Design

  • Capability to Extract Values from Specific Areas
  • No Need for Physical Interface

S Link

  • Page Save Function → Enhanced Convenience
  • High-Speed Inspection Up to 10,000 Times Per Second

PCC UI

  • The Page Control Customizing UI uses a 'GUI' method
  • Real-time monitoring is possible through the camera window

MACRO

  • Time and labor savings
  • Ultra-fast operation implementation is possible

Product

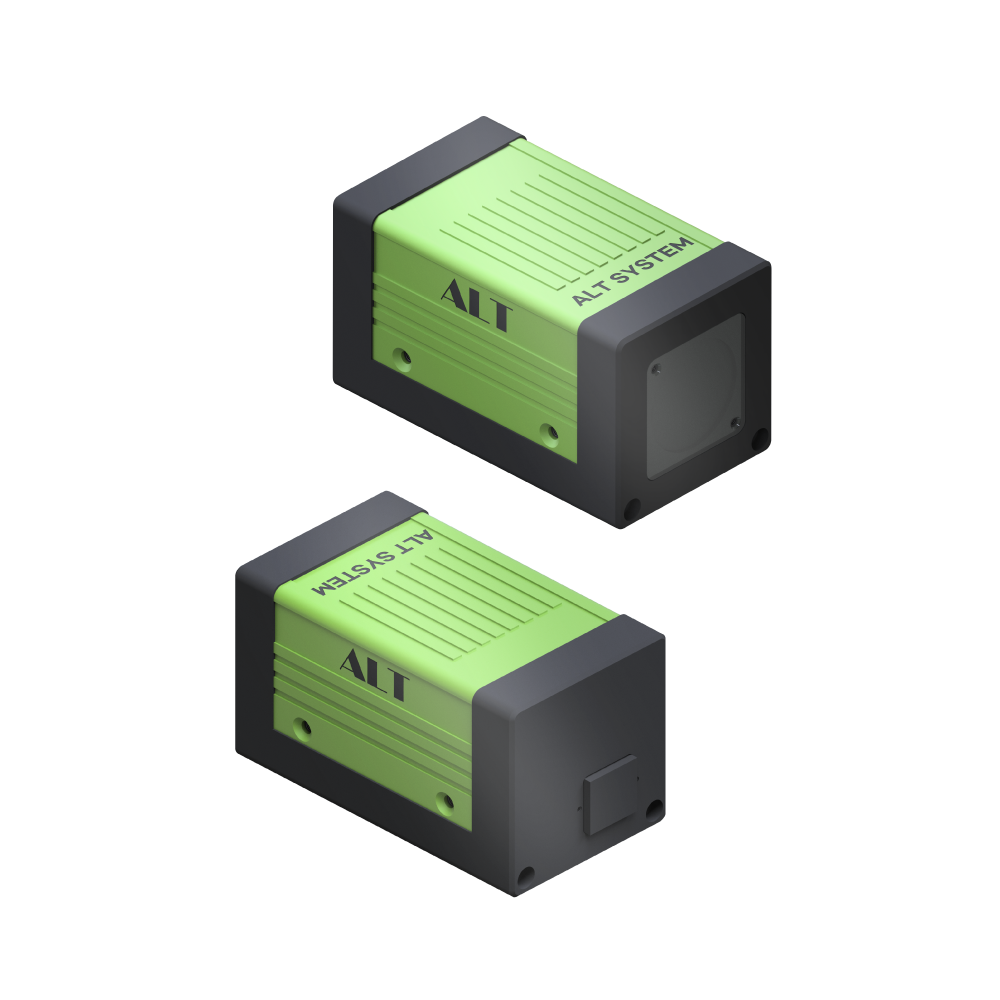

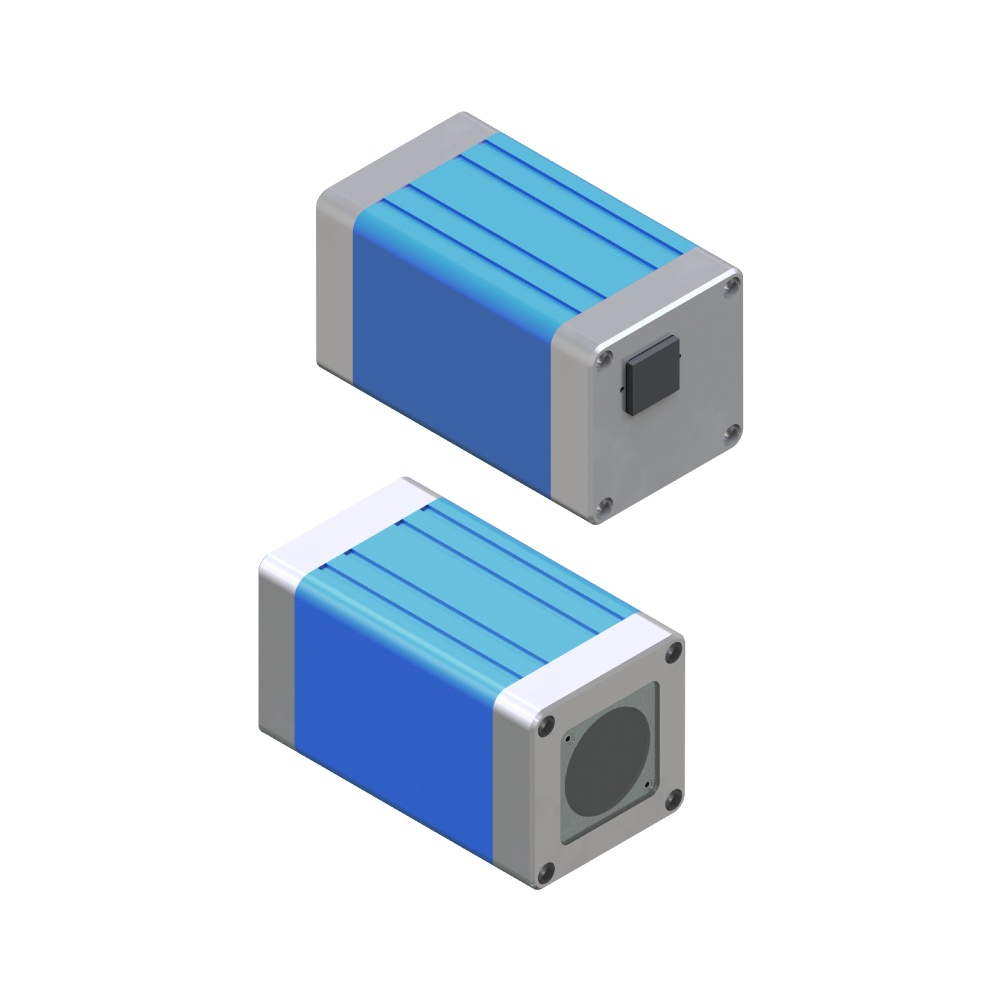

IP Camera

IP Camera

IP Camera


■

Strengths of the Product

Features of Product


Button-Based Configuration


  • Products: ALT-ERS Series, ALT-ESTP Series (multi-channel configuration)
  • ALT Tool (Previous): Required manual value changes through a list-based interface
  • ALT PRO (Current): Enhanced with a button-based configuration feature, enabling easier and more convenient value adjustments

Multi-Output Display


  • Products: ALT-LTDSE Series, ALT-TDS-100
  • ALT Tool (Previous): Allowed only one output setting per screen
  • ALT PRO (Current): Enables multiple output statuses to be displayed on a single screen, significantly reducing time and labor

UI Program


  • Products: S-Link
  • ALT Tool (Previous): Required manual value changes through a list-based interface.
  • ALT PRO (Current): Features a UI optimized for 108CH and 420CH, enabling more detailed and intuitive value adjustments.

Support Controller


  • Currently Supported by ALT PRO: ALT-ERS Series · ALT-ESTP Series · ALT-LSP Series · ALT-LSTP Series · ALT-LTDSE Series · S-Link · ALT-TDS-100

  • Planned for Future Support: ALT-TDS-400 · ALT-TDS-400I
