LED Light
LED Light

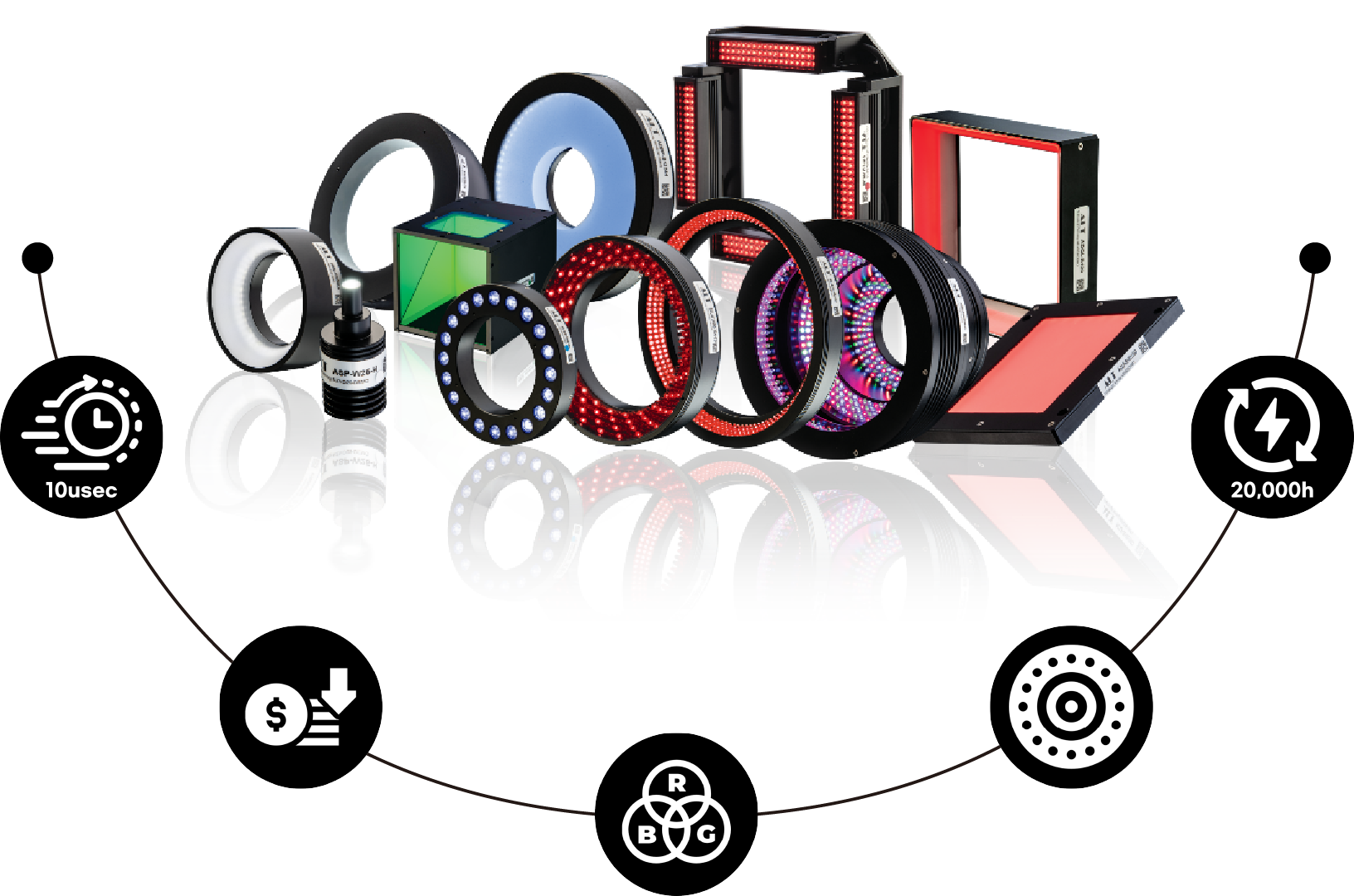

Features of LED Light
Advantages of LED Lighting
1. Fast Responsiveness
LEDs can achieve maximum brightness within 10µsec, enabling synchronization with cameras through strobe controllers and similar devices
2. Low Power Consumption
LED lighting significantly reduces power usage, consuming up to 10 times less energy than conventional lighting, resulting in substantial cost savings
3. Ease of Color Selection
LED lighting allows for the selection of various wavelength colors, enabling easy customization to match the object and optimize inspection and measurement environments
4. Lighting Customization
LED lighting emits light directly from its components, enabling the design and production of various shapes. This allows the selection of optimal illumination angles for inspection and measurement environments, ensuring the best lighting solution
5. Long Lifespan (Approximately 20,000h)
Unlike conventional lighting that requires monthly lamp replacements, LED lighting can operate for approximately 10,000 to 30,000 hours, reducing maintenance costs and increasing convenience
LED Light
Kind of LED Light
Direct Light
This lighting is useful when a distinct shadow is needed to create high contrast, as it directly illuminates the object. However, it may not be suitable for objects with high reflectivity.

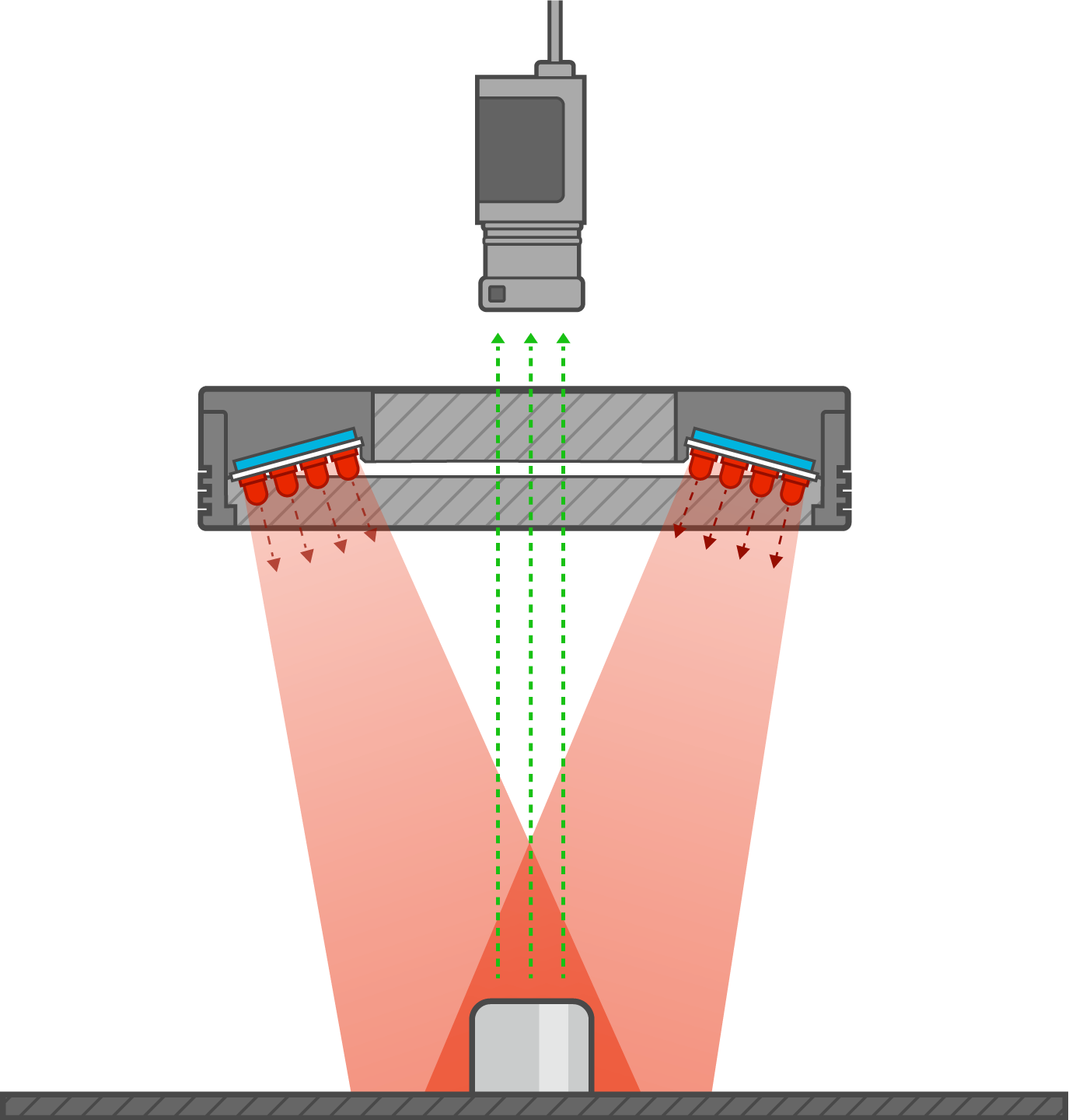

Low Angle Light
This lighting is installed at a low angle, where light reflects off surface protrusions, darkening the background while highlighting edges, foreign objects, scratches, and other features brightly.

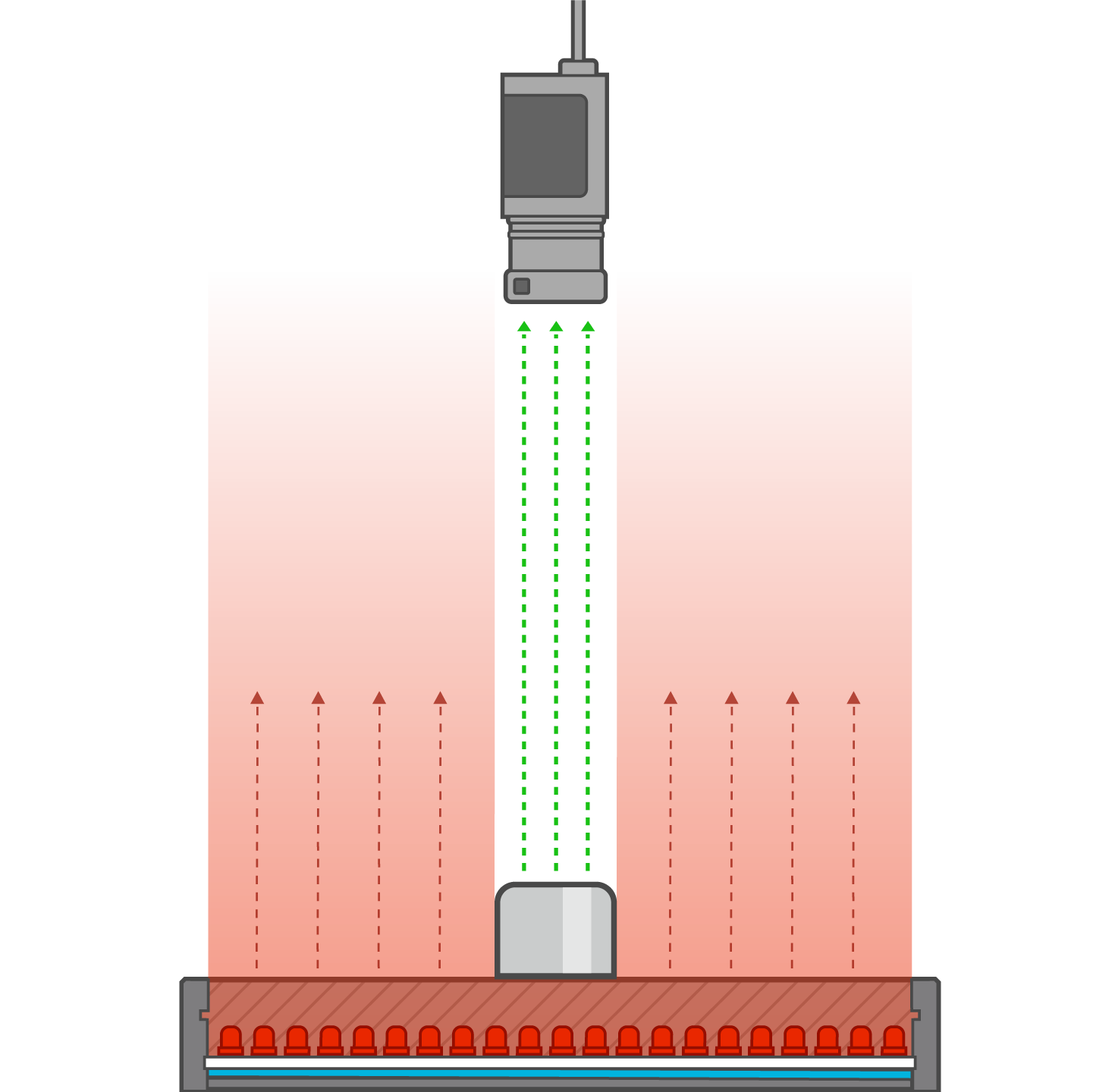

Back Light
This lighting emits from behind the object, making the background bright and the object dark. It is commonly used for shape measurement and mark recognition of translucent objects.

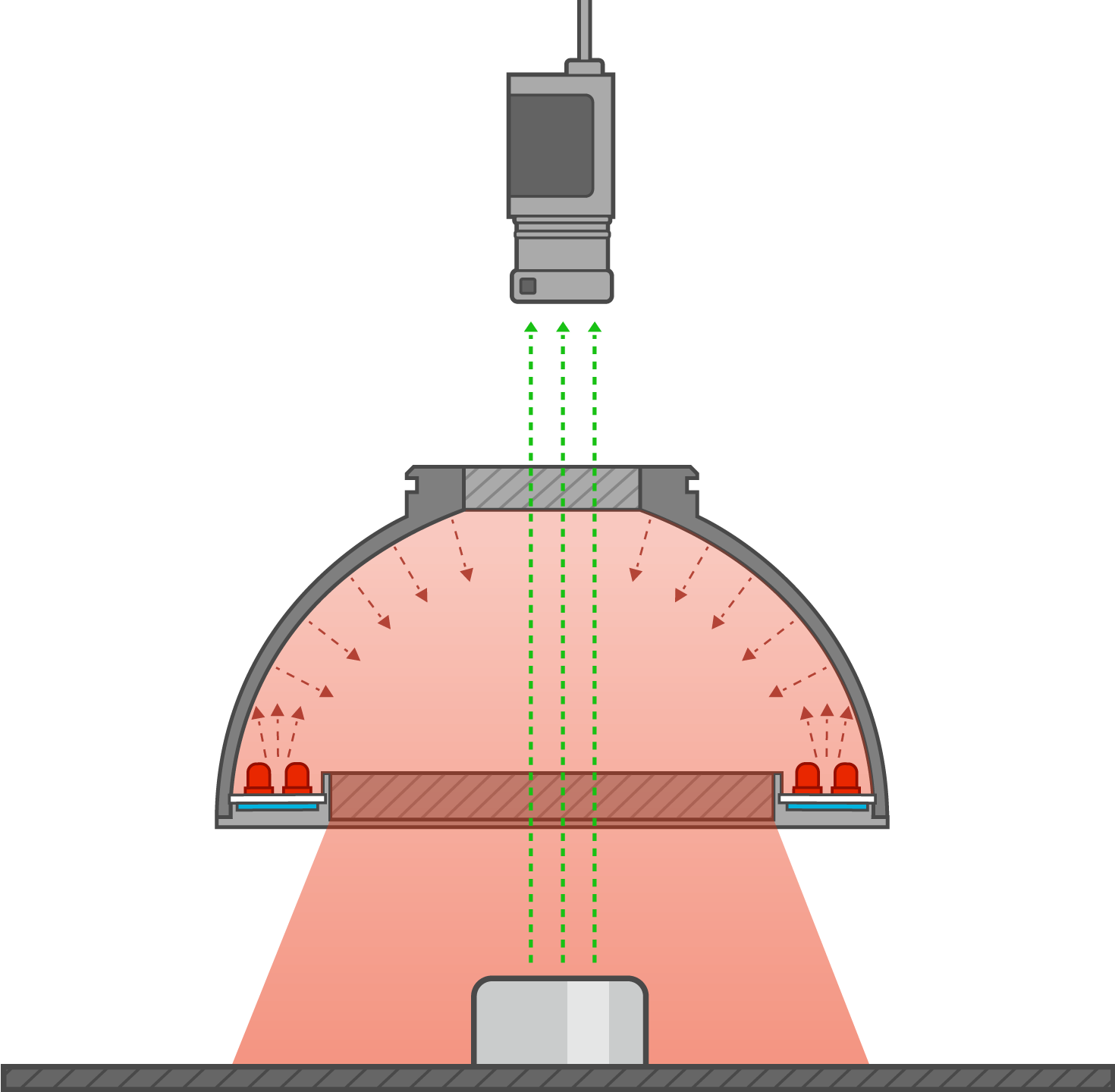

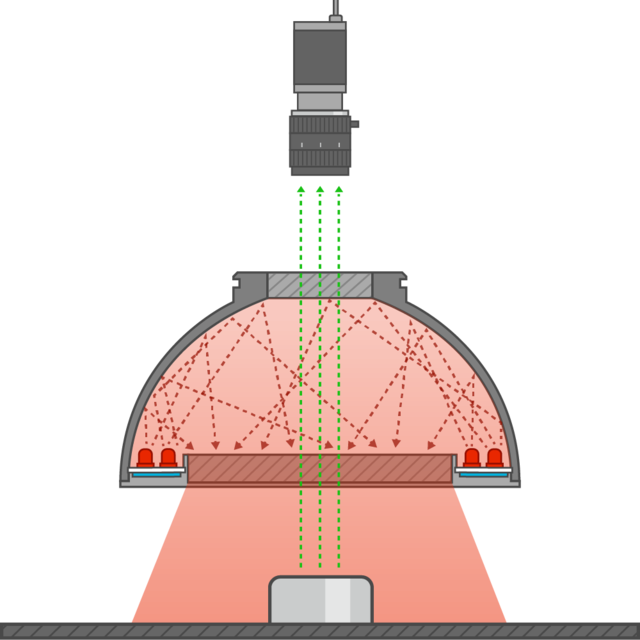

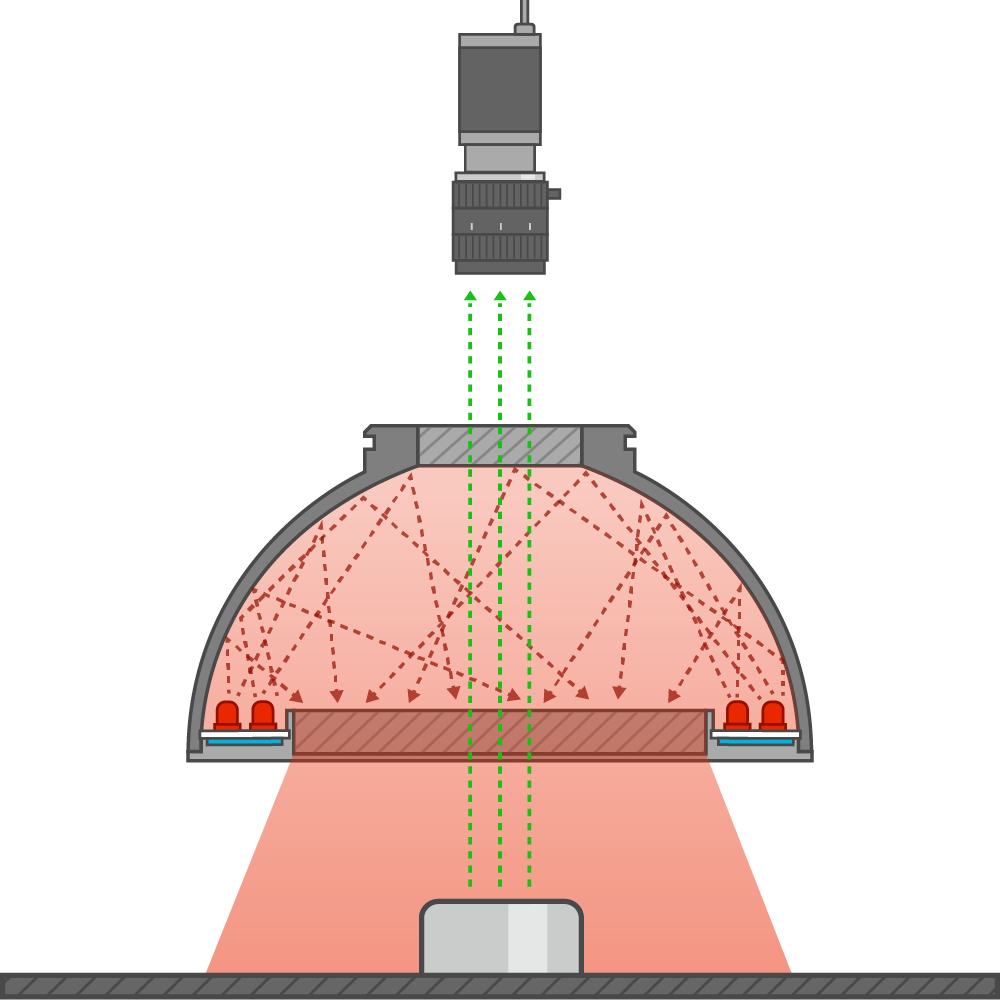

Diffuser Light
This lighting is used to diffuse light, creating soft images without shadows. It is ideal for objects with high reflectivity, such as glass. After applying dome lighting, it evenly illuminates the curved surfaces of the product, enabling the capture of inspection-friendly images.

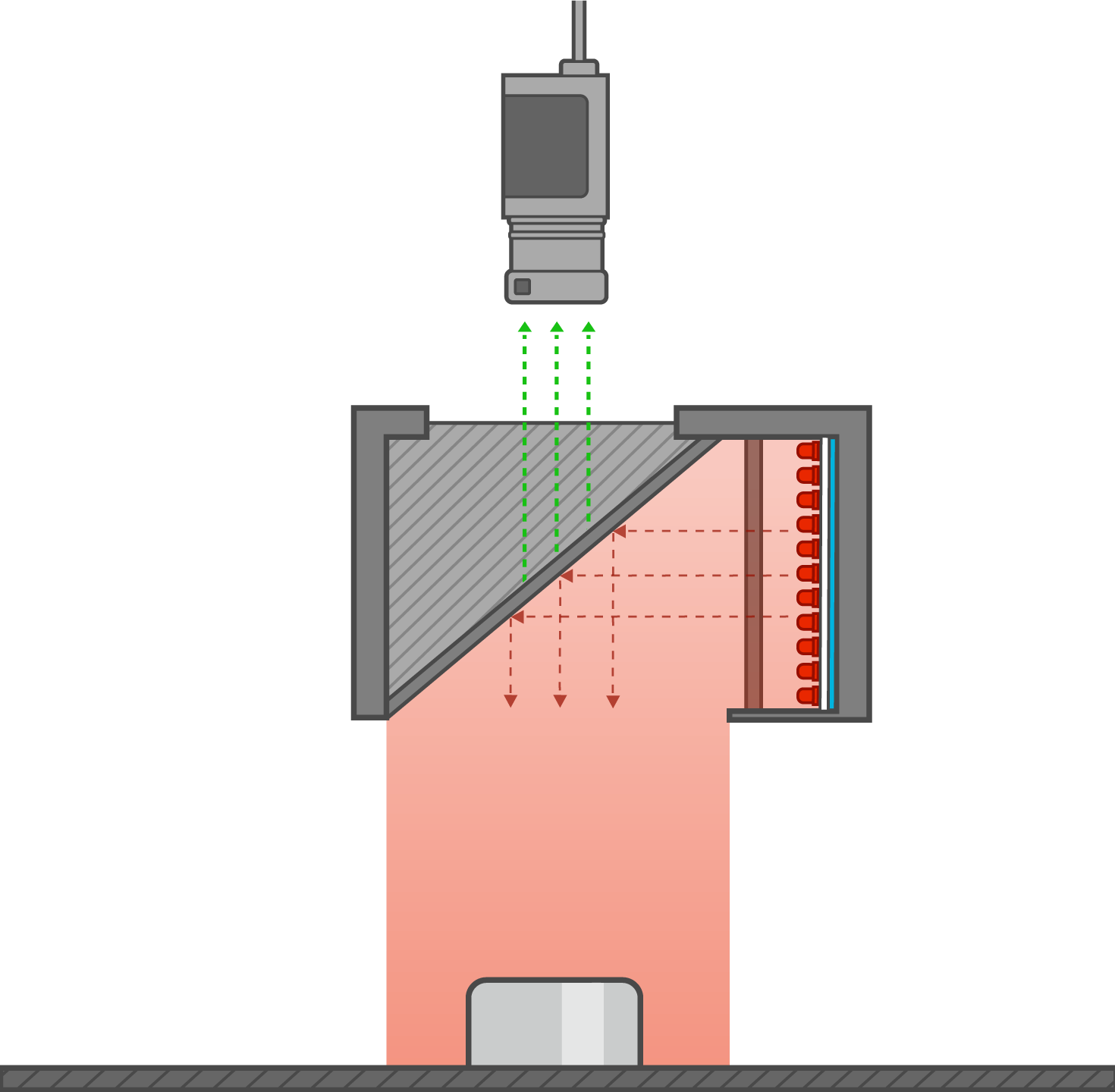

Coaxial Light
This lighting uses a half mirror inside to emit light at the same angle as the camera’s field of view. It is suitable for inspecting products with high reflectivity, such as glass, and for situations where external light causes shadows in the inspection area.
LED Light
LED Light
Features of LED Light
Advantages of LED Lighting
Fast Responsiveness
LEDs can achieve maximum brightness within 10µsec, enabling synchronization with cameras through strobe controllers and similar devices
Long Lifespan (Approximately 20,000h)
Unlike conventional lighting that requires monthly lamp replacements, LED lighting can operate for approximately 10,000 to 30,000 hours, reducing maintenance costs and increasing convenience
Low Power Consumption
LED lighting significantly reduces power usage, consuming up to 10 times less energy than conventional lighting, resulting in substantial cost savings
Ease of Color Selection
LED lighting allows for the selection of various wavelength colors, enabling easy customization to match the object and optimize inspection and measurement environments
Lighting Customization
LED lighting emits light directly from its components, enabling the design and production of various shapes. This allows the selection of optimal illumination angles for inspection and measurement environments, ensuring the best lighting solution
LED Light
Kind of LED Light
Direct Light
This lighting is useful when a distinct shadow is needed to create high contrast, as it directly illuminates the object. However, it may not be suitable for objects with high reflectivity.
Low Angle Light
This lighting is installed at a low angle, where light reflects off surface protrusions, darkening the background while highlighting edges, foreign objects, scratches, and other features brightly.
Back Light
This lighting emits from behind the object, making the background bright and the object dark. It is commonly used for shape measurement and mark recognition of translucent objects.
Diffuser Light
This lighting is used to diffuse light, creating soft images without shadows. It is ideal for objects with high reflectivity, such as glass. After applying dome lighting, it evenly illuminates the curved surfaces of the product, enabling the capture of inspection-friendly images.
Coaxial Light
This lighting uses a half mirror inside to emit light at the same angle as the camera’s field of view. It is suitable for inspecting products with high reflectivity, such as glass, and for situations where external light causes shadows in the inspection area.
