Product

Non-Telecentric Lens

MCL Series

■ Applicable in environments where a telecentric lens is not required

■ Compact size and easy to use

Product

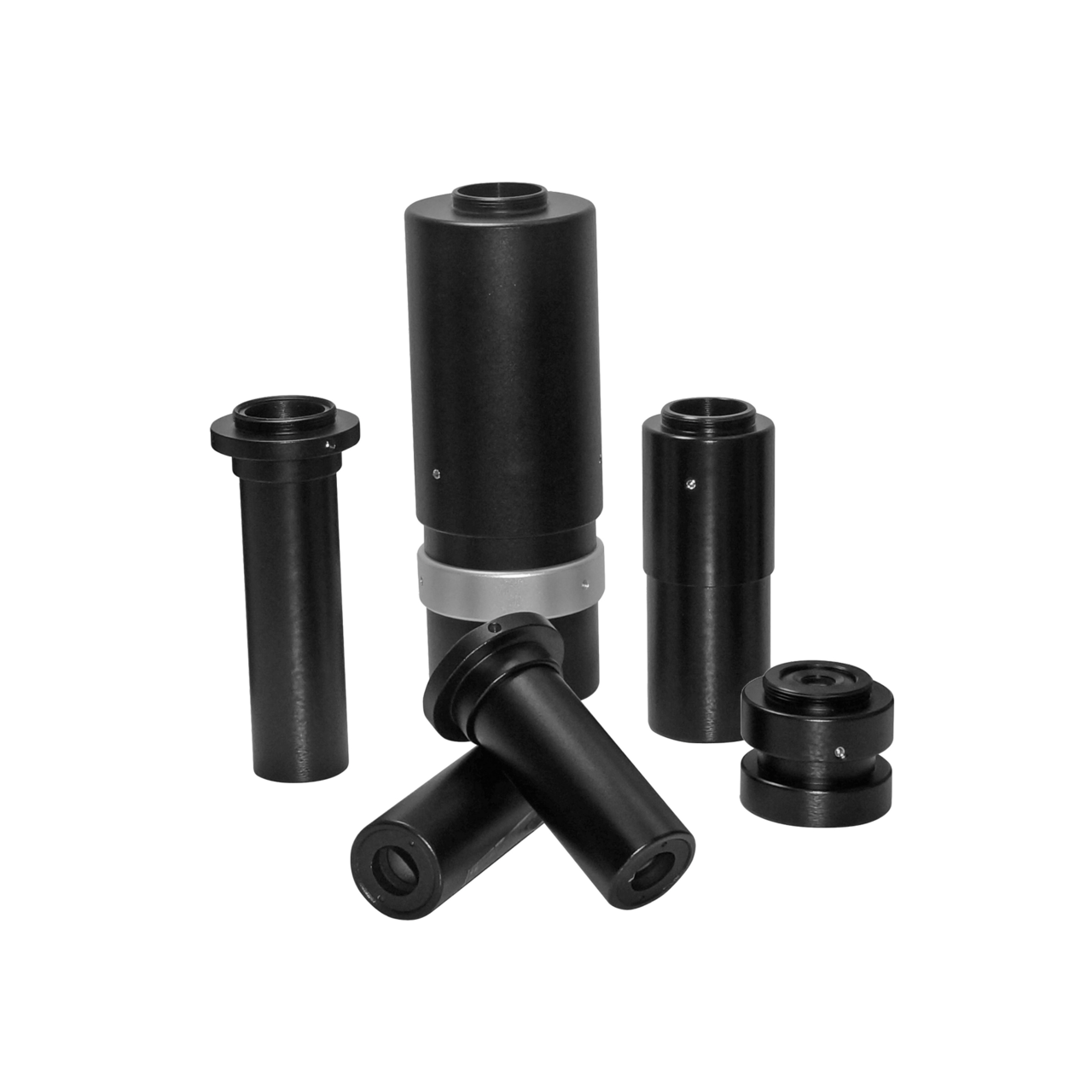

Non-Telecentric Lens

MCL Series

■ Applicable in environments where a telecentric lens is not required

■ Compact size and easy to use

Product Specifications

Product List

◈ MCL-Sensor Dia 8mm~14mm Series

Model
Mag
W.D(mm)
Resolution(um)
N.A
Effective F/#
D.O.F(um)
MCL0.063X-240-9
0.063X24053.20.00635100mm
MCL0.063X-300-9
0.063X30053.20.0063
5100mm
MCL0.2X-255-9
0.2X25523.50.0142
714mm
MCL0.22X-310-110.22X31022.60.0148
7.412.2mm
MCL0.228X-220-8
0.228X22018.40.0182
6.251.48mm
MCL0.25X-279-11
0.25X27920.60.0162
7.79.6mm
MCL0.3X-195-9
0.3X195290.0115
139.8mm
MCL0.3X-240-11
0.3X24017.40.01927.811.5mm
MCL0.32X-225-11
0.32X22516.80.02
86.9mm
MCL0.35X-210-11
0.35X21015.30.021886.25mm
MCL0.37X-200-11
0.37X20014.50.0231
84.6mm
MCL0.43X-135-14
0.43X13520.30.0165
135.6mm
MCL0.466X-125-14
0.466X12520.10.0166
145.1mm

◈ MCL-Sensor Dia 18mm (1.1") Series

Model
Mag
W.D(mm)
Resolution(um)
N.A
Effective F/#
D.O.F(um)
MCL0.4X-190-18
0.4X
19016.80.02102.7mm
MCL0.5X-160-18
0.5X
16013.40.025101.7mm
MCL0.55X-107-18
0.55X
10718.30.0172
162.3mm
MCL0.568X-145-18
0.568X
14511.80.0284
101.36mm
MCL0.67X-128-18
0.67X
12815.20.022
152.67mm
