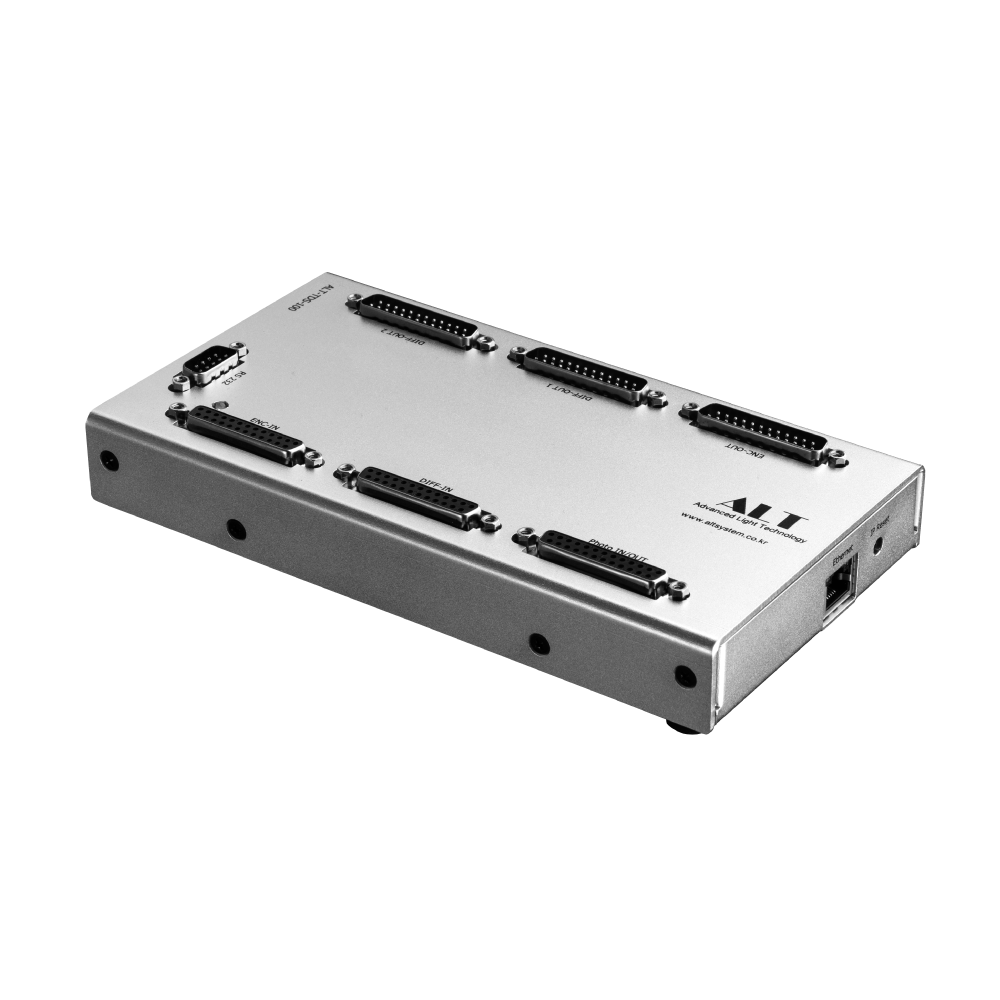

ALT-TDS-100
T-Divider
■ Baud Rate fixed at 115,200bps for consistent and high-speed data transmission
■ Ethernet(100Mbps, TCPIP), RS-232C(Baud rate : 115,200bps)
■ I/O Mode : Photo-Coupler, Differential Input · Output
■ Reset Button: Restores the configured IP address to the default IP (192.168.10.10) for quick recovery or reconfiguration
ALT-TDS-100
Product Lineup
[ ALT-TDS-100 ]
ALT-TDS-100
T-Divider
■ Baud Rate fixed at 115,200bps for consistent and high-speed data transmission
■ Ethernet(100Mbps, TCPIP), RS-232C(Baud rate : 115,200bps)
■ I/O Mode : Photo-Coupler, Differential Input · Output
■ Reset Button: Restores the configured IP address to the default IP (192.168.10.10) for quick recovery or reconfiguration
ALT-TDS-100
Product Lineup
[ ALT-TDS-100 ]
Product Specification
Product List
Model | Dimension | Output Channel(CH) | ||
| ALT-TDS-100 | W(mm) : 217, D(mm) : 39.5, H(mm) : 111 | Encoder 4CH, Diff-Output 16CH, Photo-Output 8CH, Operation of Delay/Active Interval |  |
