Product

ace Classic · ace U · ace L

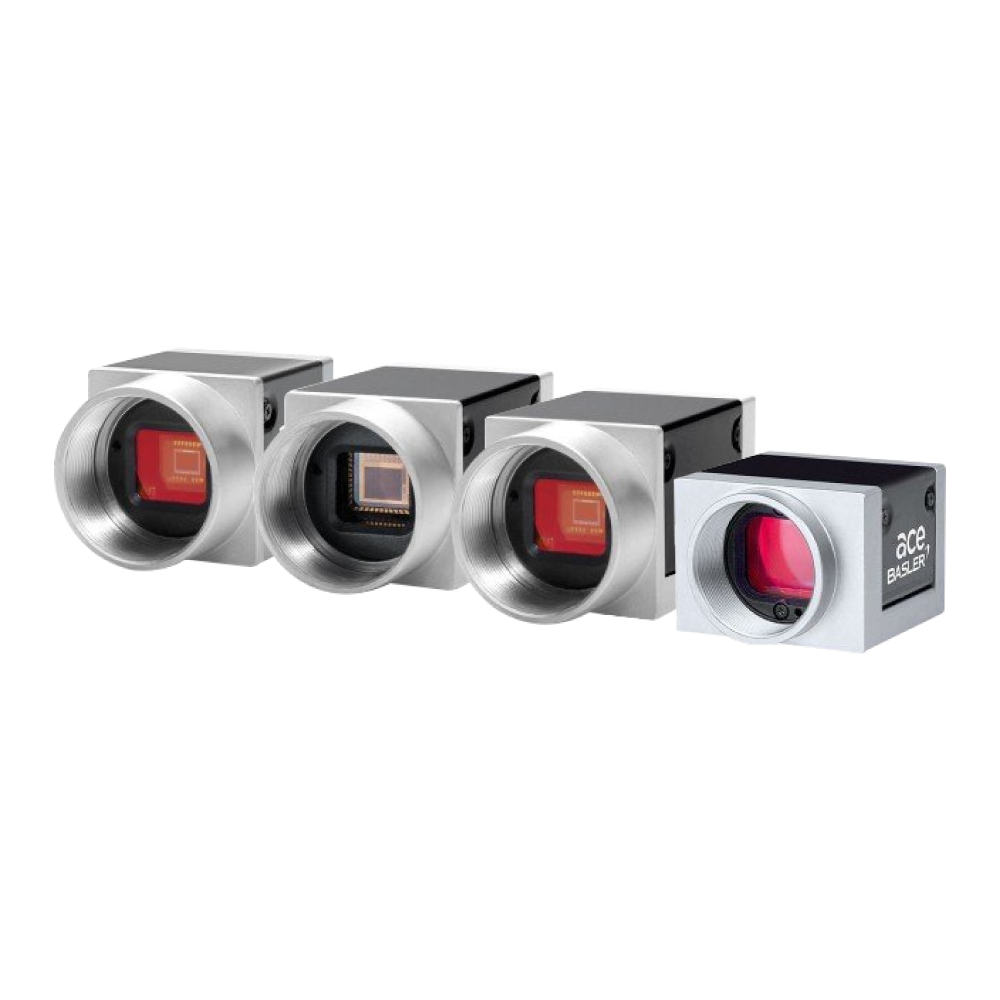

Basler ace Series

■ Over 130 models offering resolutions from VGA to 20 MP and frame rates up to 751 fps
■ Comprehensive sensor portfolio: CCD, CMOS, and NIR variants
■ Interfaces: USB 3.0, GigE, and Camera Link
■ Power and data transfer cable solutions: Gigabit Ethernet with PoE, Camera Link with PoCL, and USB 3.0
■ Enhanced I/O flexibility: Minimizing latency and jitter for maximum precision in applications
■ Wide range of firmware features
■ Excellent cost-performance ratio
■ Compliance with USB3 Vision, GigE Vision, and Camera Link standards: Ensuring top-notch reliability and flexibility
■ Easy integration with Basler’s pylon camera software suite

Basler ace Series

Product Lineup

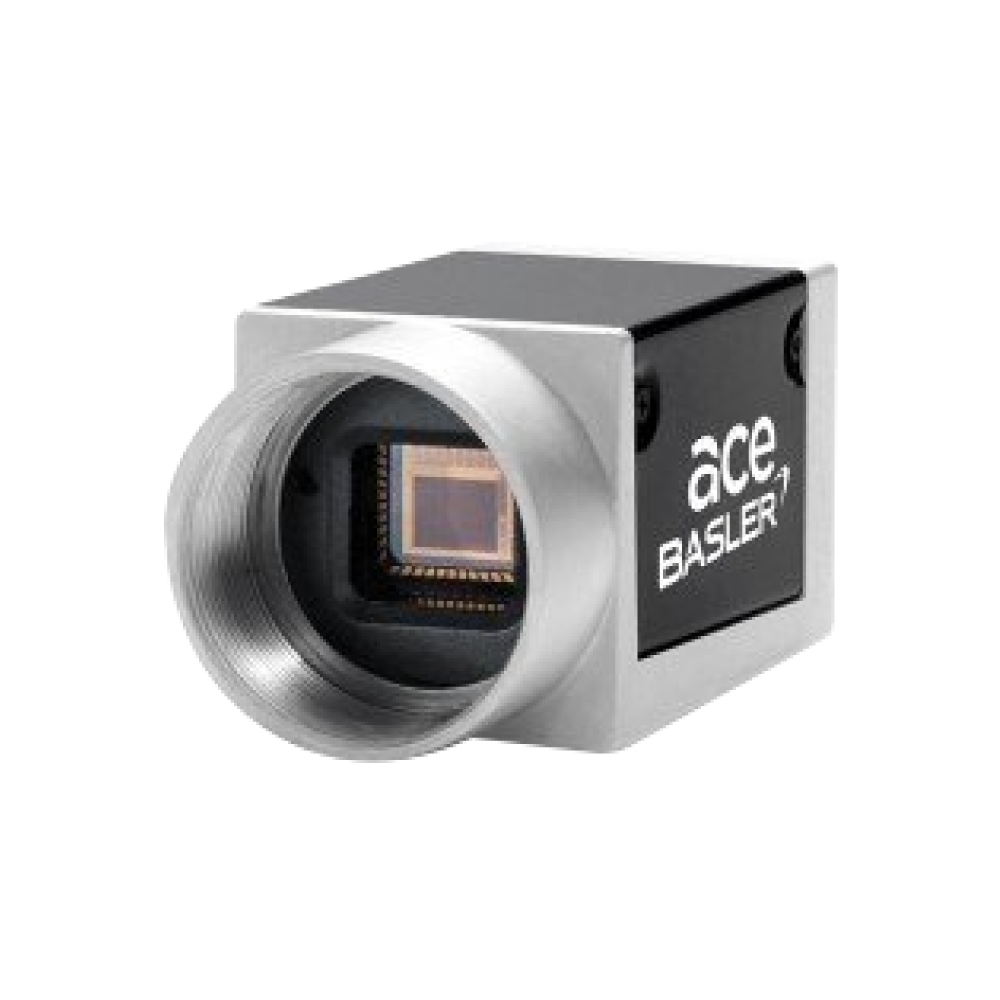

[ ace Classic ]

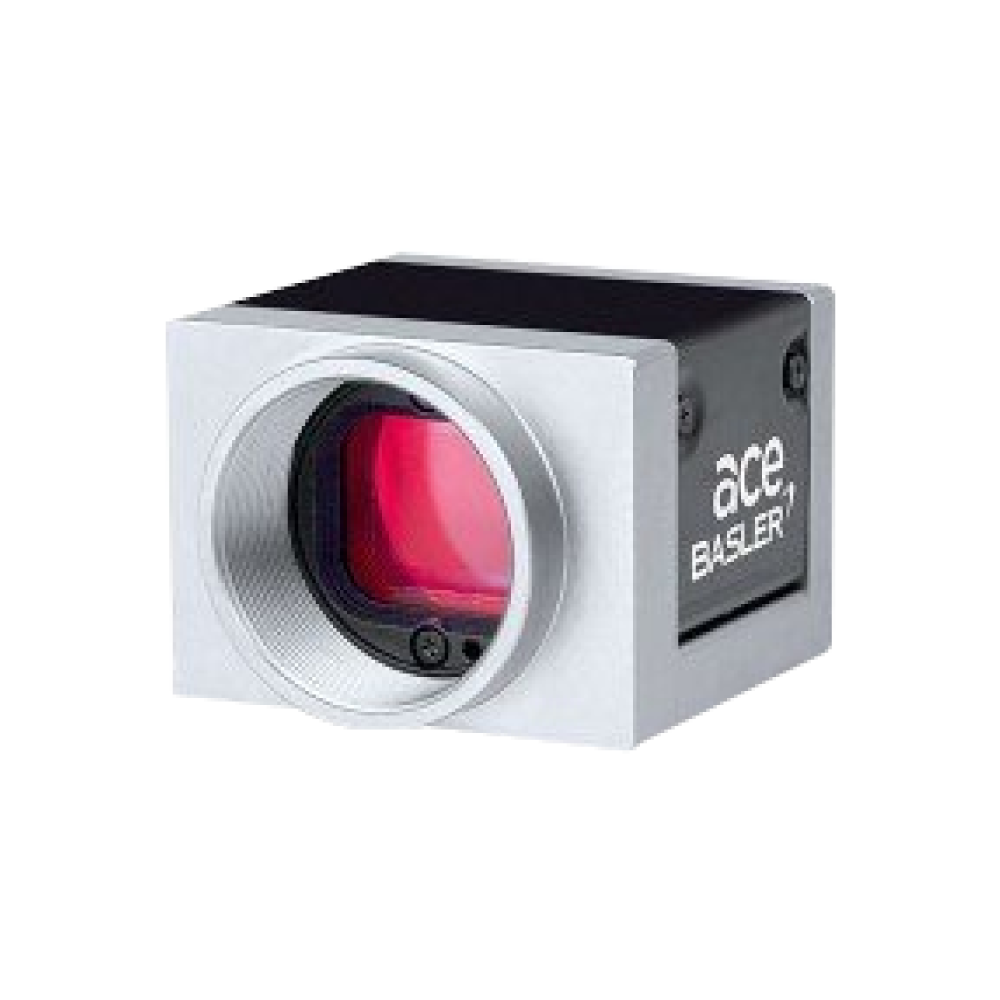

[ ace U ]

[ ace L ]

Product

ace Classic · ace U · ace L

Basler ace Series

■ Over 130 models offering resolutions from VGA to 20 MP and frame rates up to 751 fps
■ Comprehensive sensor portfolio: CCD, CMOS, and NIR variants
■ Interfaces: USB 3.0, GigE, and Camera Link
■ Power and data transfer cable solutions: Gigabit Ethernet with PoE, Camera Link with PoCL, and USB 3.0
■ Enhanced I/O flexibility: Minimizing latency and jitter for maximum precision in applications
■ Wide range of firmware features
■ Excellent cost-performance ratio
■ Compliance with USB3 Vision, GigE Vision, and Camera Link standards: Ensuring top-notch reliability and flexibility
■ Easy integration with Basler’s pylon camera software suite

Basler ace Series

Product Lineup

[ ace Classic ]

[ ace U ]

[ ace L ]

Product Specification

Product List

Model
Resolution(MP)
Frame Rate(fps)
Mono / Color
Interface

acA1280-60gc
1.360.0ColorGigE
acA1280-60gm
1.360.0MonoGigE
acA1300-60gc (CS-Mount)
1.360.0ColorGigE
acA1300-60gc1.360.0ColorGigE
acA1300-60gm
1.360.0MonoGigE
acA1300-60gm (CS-Mount)
1.360.0MonoGigE
acA1300-60gmNIR (CS-Mount)
1.360.0MonoGigE
acA1300-60gmNIR1.360.0ColorGigE
acA1600-20gc2.020.0ColorGigE
acA1600-20uc
2.020.0ColorUSB 3.0
acA1600-60gc2.060.0ColorGigE
acA1600-60gc (CS-Mount)
2.060.0ColorGigE
acA1600-60gm2.060.0MonoGigE
acA1920-25gc
2.025.0ColorGigE
acA1920-25gc (CS-Mount)
2.025.0ColorGigE
acA1920-25gm
2.025.0MonoGigE
acA1920-25uc
2.026.0ColorUSB 3.0
acA1920-25um
2.026.0MonoUSB 3.0
acA2000-50gc
2.050.0ColorGigE
acA2000-50gc (CS-Mount)
2.050.0ColorGigE
acA2000-50gm
2.050.0MonoGigE
acA2000-165uc
2.0165.0ColorUSB 3.0
acA2000-165um
2.0165.0MonoUSB 3.0
acA2000-340kc
2.0340.0ColorCamera Link
acA2000-340km
2.0340.0MonoCamera Link
acA2040-25gc
4.025.0ColorGigE
acA2040-25gm
4.025.0MonoGigE
acA2040-25gmNIR
4.025.0MonoGigE
acA2040-90uc
4.090.0ColorUSB 3.0
acA2040-90um
4.090.0MonoUSB 3.0
acA2040-90umNIR4.090.0MonoUSB 3.0
acA2040-180kc
4.0180.0ColorCamera Link
acA2040-180km
4.0180.0MonoCamera Link
acA2040-180kmNIR
4.0180.0MonoCamera Link
acA2500-14gc
5.014.0ColorGigE
acA2500-14gc (CS-Mount)
5.014.0ColorGigE
acA2500-14gm
5.014.0MonoGigE
acA2500-14gm (CS-Mount)
5.014.0MonoGigE
acA2500-14uc
5.014.0ColorUSB 3.0
acA2500-14uc (CS-Mount)
5.014.0ColorUSB 3.0
acA2500-14um
5.014.0MonoUSB 3.0
acA2500-14um (CS-Mount)
5.014.0MonoUSB 3.0
acA3800-10gc
10.010.0ColorGigE
acA3800-10gm10.010.0MonoGigE
acA3800-14uc10.014.0ColorUSB 3.0
acA3800-14um
10.014.0MonoUSB 3.0
